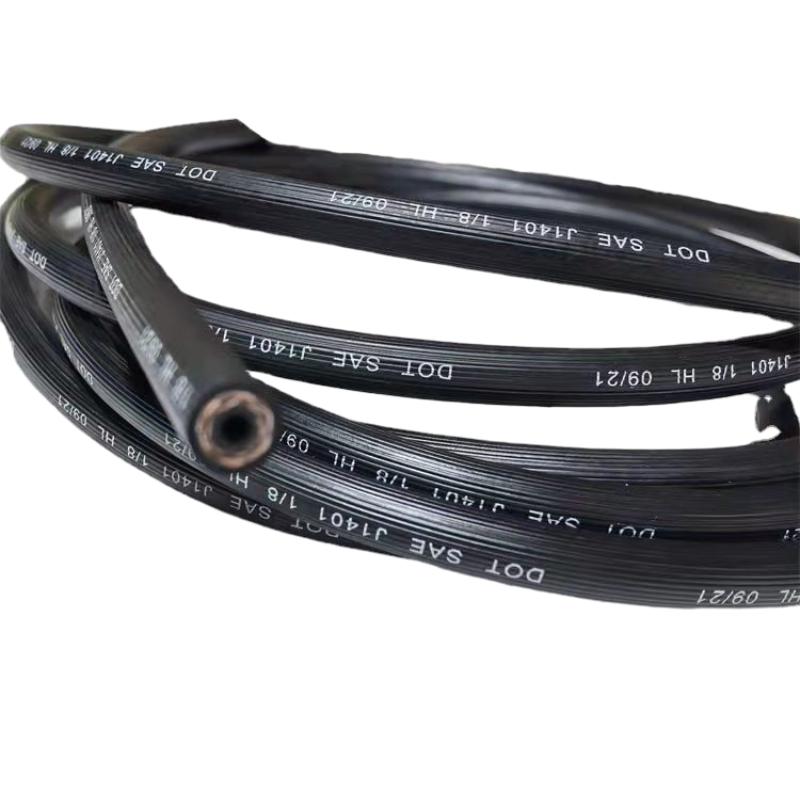

Ultra Low Volumetric Expansion Hydraulic Brake Hose

Short Description:

Working Temperature:-40℃～+150℃/-40°F～300°F

Tube: Special rubber formula with perfect brake fluid compatibility -EPDM

Reinforcement: PVA

Cover: EPDM-synthetic rubber

Surface: Ribbed Surface

Standard: SAE14021

Certificate:3C/DOT

Application: car

CONTACT NOW down load to pdf

Tags

Simple Introduction

Ultra low Volumetric Epansion of this brake hose.

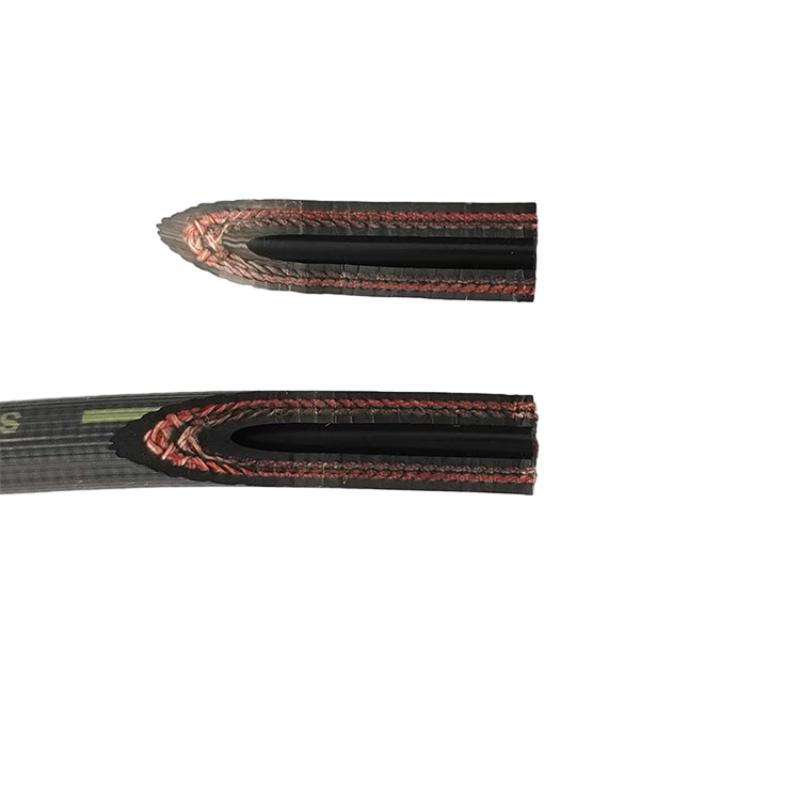

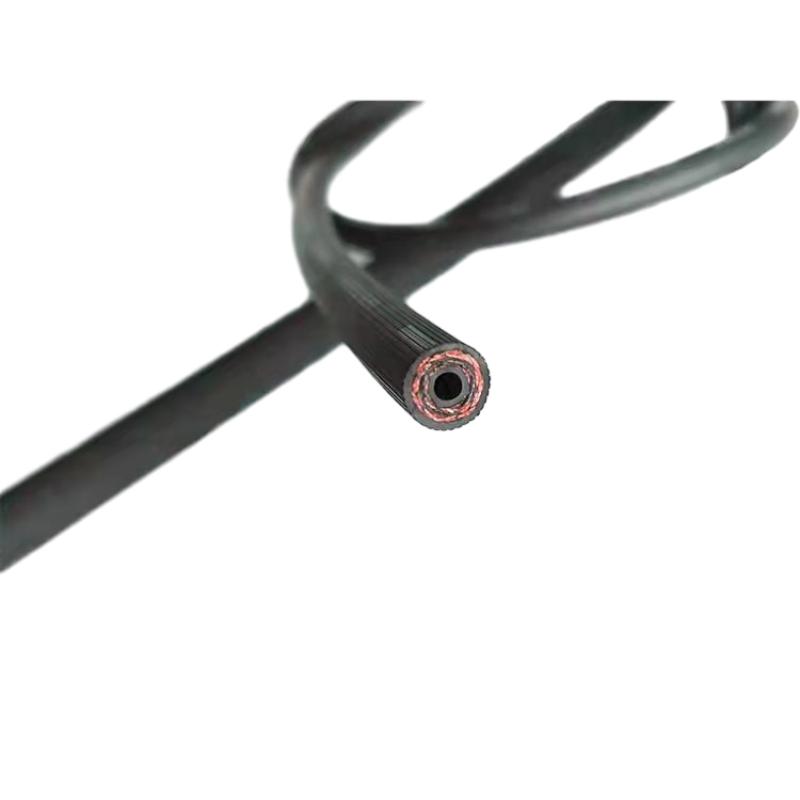

SAE J1401 brake hose consists of five layers.

(EPDM rubber is used for the inner tube. The first layer is made of PVA reinforced textile braid, then adhesive coating, the second layer of PVA reinforced textile braid, and finally EPDM rubber outer protective layer.)

hydraulic brakes are mostly disc type, which is suitable for Passenger cars.

SPECIAL FEATURES

● High Pressure resistance

● Cold Resistance

● Ozone Resistance

● Ultra low Volume Expansion

● Excellent Flexibility

● High Tensile Strength

● Aging Resistance

● Bursting Resistancence
● Excellent Resistance of Heat

● Abrasion Resistance

● Reliable Braking effects

Parameter

SPECIFICATIONS:
Inch	Spec(mm)	I.D（mm)	O.D(mm)	Max B.Mpa	Max B.Psi
1/8"	3.2*10.2	3.35±0.20	10.2±0.30	70	10150
1/8"	3.2*10.5	3.35±0.20	10.5±0.30	80	11600
1/8"	3.2*12.5	3.35±0.30	12.5±0.30	70	10150
3/16"	4.8*12.5	4.80±0.20	12.5±0.30	60	8700
1/4"	6.3*15.0	6.3±0.20	15.0±0.30	50	7250
