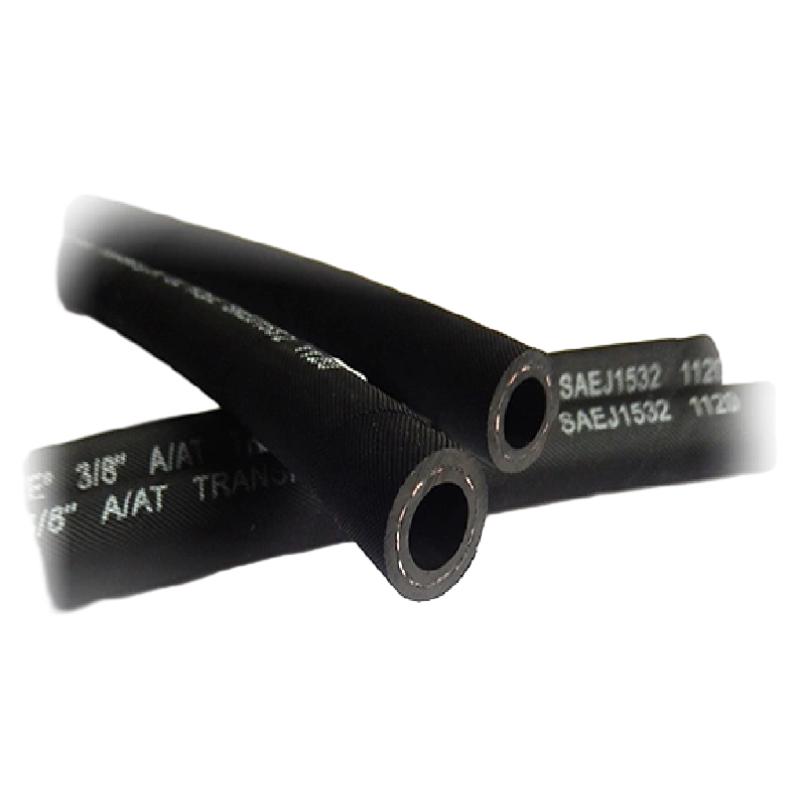

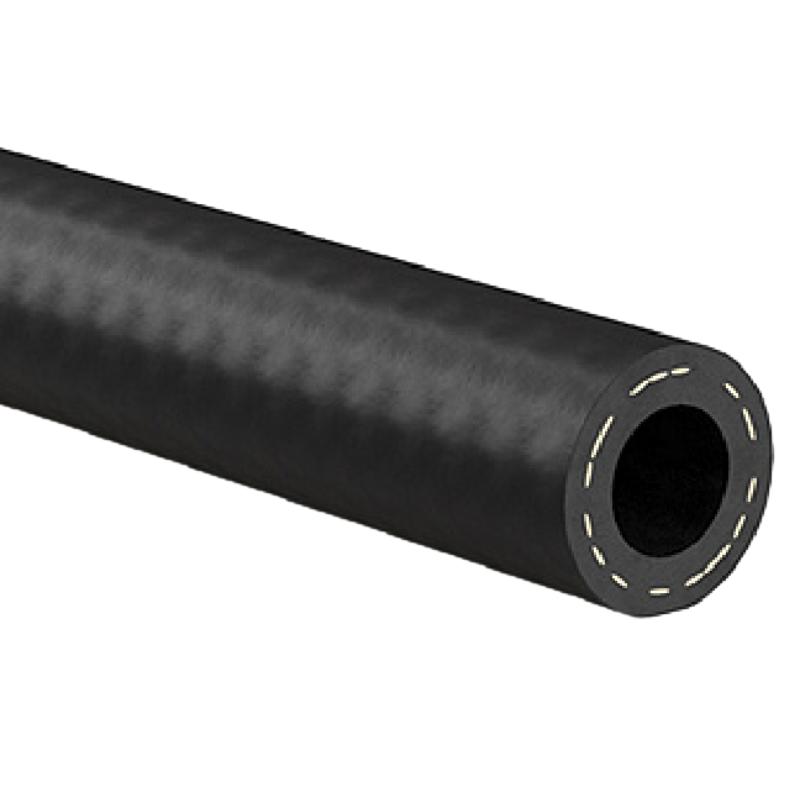

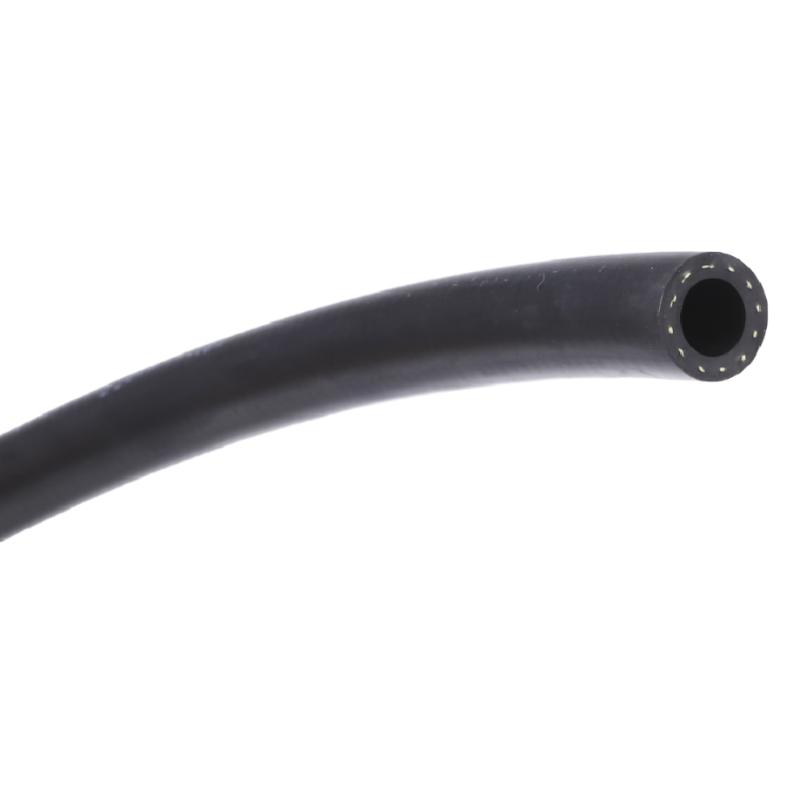

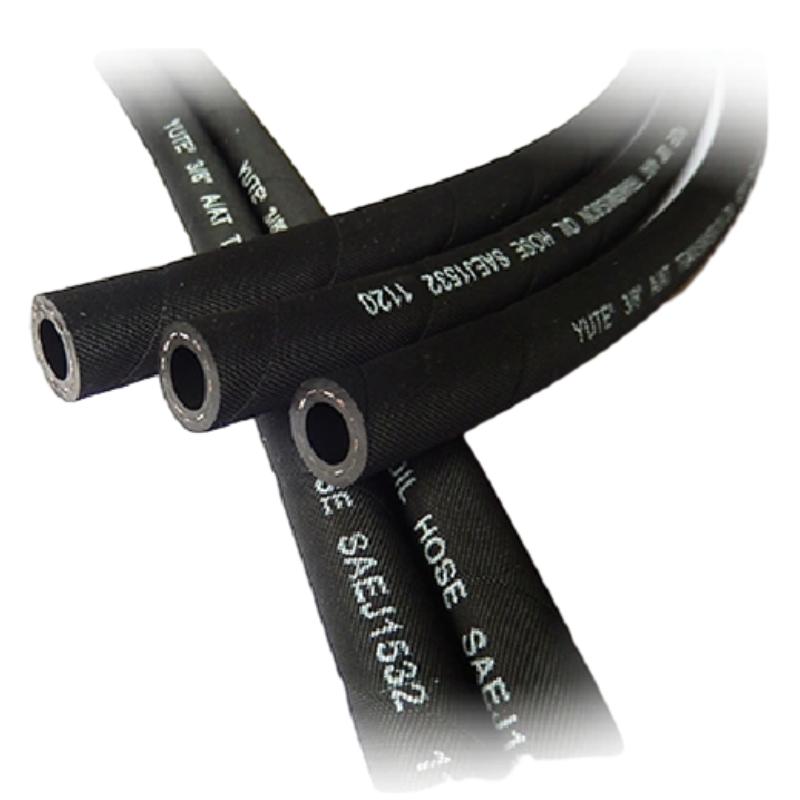

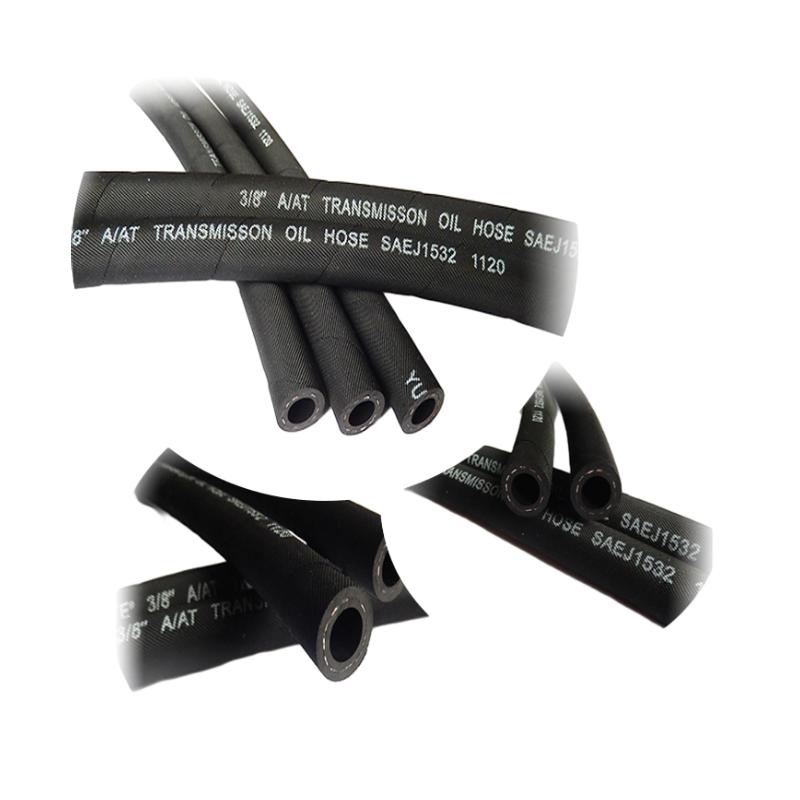

Oil Cooler Hose SAE J1532

Short Description:

Temperature: -40℃ ~ +170℃/-40°F ~ +330°F

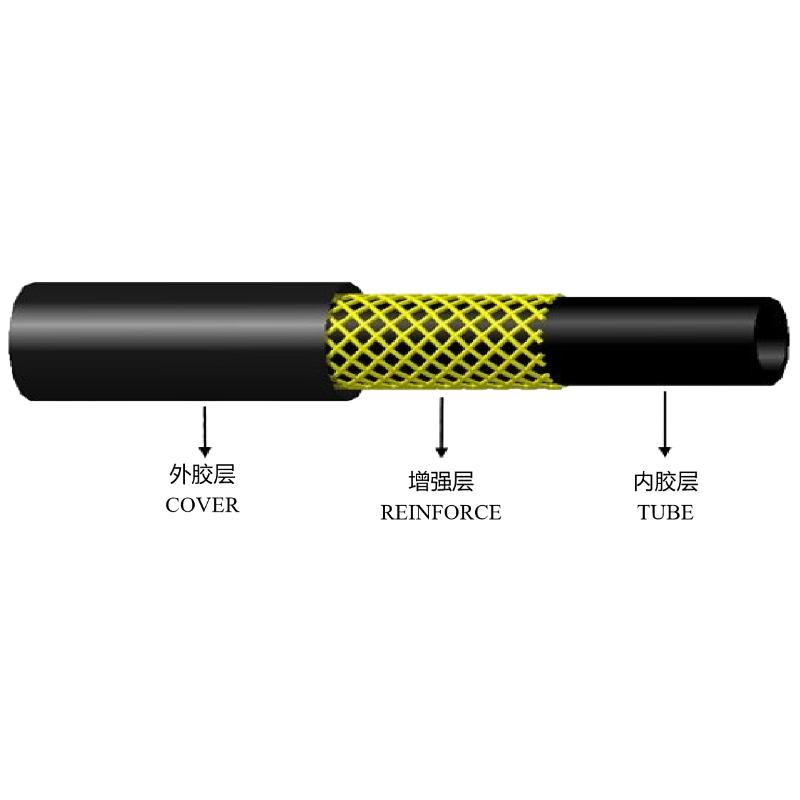

Tube: High-Performance Formula(AEM)

Reinforcement: High Tensile Braided Fiber

Cover: High-Performance Synthetic Rubber(AEM)

Standard: SAE J1532

Certificate: ISO/TS 16949:2009

Application: Transporting oil to automatic transmission fluid

CONTACT NOW down load to pdf

Tags

Product Information

The oil cooler hose circulates oil between the oil cooler and engine. This helps keep the engine from overheating. Over time, heat, chemicals, or age can cause the hose to wear out. If the oil cooler hose fails, you may experience oil leaking from the hose or a low oil warning light. It is important to inspect this hose at the first sign of a problem to avoid damage to your engine, as an engine running without oil will result in major damage and costly repairs.

The oil cooler hose is designed to last for nearly as long as the engine does. Over time, the heat that this hose is exposed to will usually start to wear it down. Most of the oil cooler hoses on the market are made from both rubber and metal. It is usually the rubber portion of the hose that will give out and make it necessary to get a new one.

How Oil Cooler System Works?

1. Oil cooler, which works is: when the cooler work, the hydraulic system of high temperature oil flow, and forced flow of cold air for efficient heat exchange, which makes the high temperature oil cooling To the operating temperature, so that you can ensure that the equipment can be continuous normal operation, so as to avoid excessive oil temperature problems.

2. Oil cooler working pressure, its general, under normal circumstances, is 1.6MPa, its upper limit, is 5MPa, if more than, then, there will be a variety of problems. Moreover, it also has a lower limit, therefore, it can not be lower than this value.

Parameter

Oil Cooler Hose SAE J1532 Size List
Specification(mm)	I.D(mm)	O.D(mm)	Working Pressure Mpa	Working Pressure Psi	Burst Pressure Min.Mpa	Burst Pressure Min.Psi
8.0*14.0	8.0±0.20	14.0±0.30	2.06	300	8.27	1200
10.0*17.0	10.0±0.30	17.0±0.40	2.06	300	8.27	1200
13.0*22.0	13.0±0.40	22.0±0.50	2.06	300	8.27	1200

Fuel Hose Feature:

Oil Resistance;Aging Resistance; Corrosion Resistance; Superior Heat Dissipation; High and Low-Temperature Resistance

Applicable Liquid:

Gasoline, Diesel, Hydraulic and Machinery oil, and Lubricating oil,
E10、E20、E55、E85 for passenger cars, Diesel vehicles, and other fuel supply systems.
