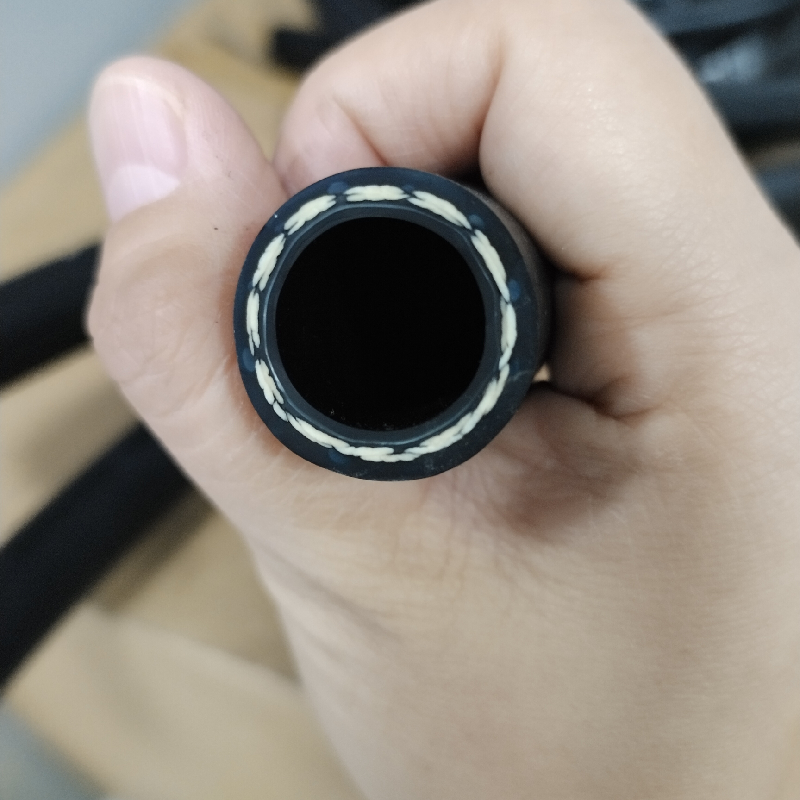

4890 AC HOSE

Short Description:

Temperature -40℃~+135℃ -40°F~+275°F

Tube: CR

Barrier: PA/NYLON

Friction: CR

Reinforcement: PET/PVA

Cover: CIIR

Standard: SAE J3062

Certificate ISO/TS 16949:2009

CONTACT NOW down load to pdf

Tags

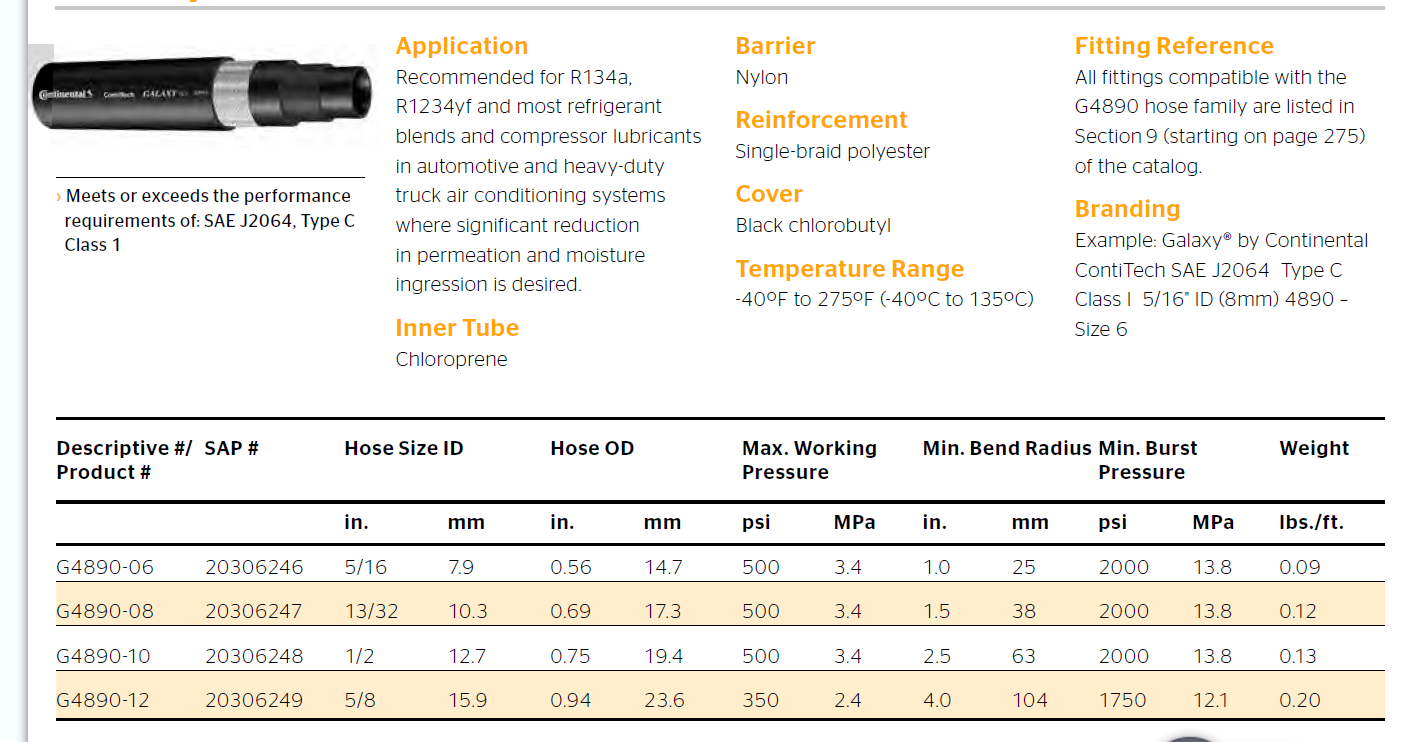

Parameter

Specification	Size	I.D	O.D	Thickness	Max Working Pressure		Min Burst Pressure		Min Bend Radius	Permeation
Inch	mm	mm	mm	mm	Mpa.	Psi	Mpa.	Psi	mm	kg/㎡/year
5/16	8.2*14.7	8.2±0.3	14.7±0.5	5.5	3.5	508	18	2610	25	1.6
13/32	10.3*17.3	10.3±0.3	17.3±0.5	6.2	3.5	508	18	2610	38	1.6
1/2	12.7*25.4	19.4±0.3	19.4±0.5	6.2	3.5	508	18	2610	63	1.6
5/8	16.0*23.6	16.0±0.3	23.6±0.5	5	2.5	363	15	2175	104	1.6

KEMO Advantage

(1) We introduced the Technical Engineers and Production Engineers from Goodyear and Parker Company, we have over 15 years experience in domestic market and Top 3 Manufacturer in China.
(2)Developed new products with many well-known research institutions and testing centers in China
(3) Research and develop new materials，new products, and new processes
(4) Ability to test and experiment the performance of products
Therefore, KEMO can provide OEM, ODM services, provide foreign customers with new product design, development, testing and providing related testing reports as customer's request.

Package

1. Transparent PVC film packing,
2. Color woven bag packing ( Blue / White / Green / Yellow)
3. Pallet packing
4. Carton packing
5. Spool packing

Application

The Air Conditioning Hose is used in the Air Conditioning System of cars, trucks, and other vehicles with the performance of low permeability, pulse resistance, aging resistance, Ozone resistance, and shock resistance.
