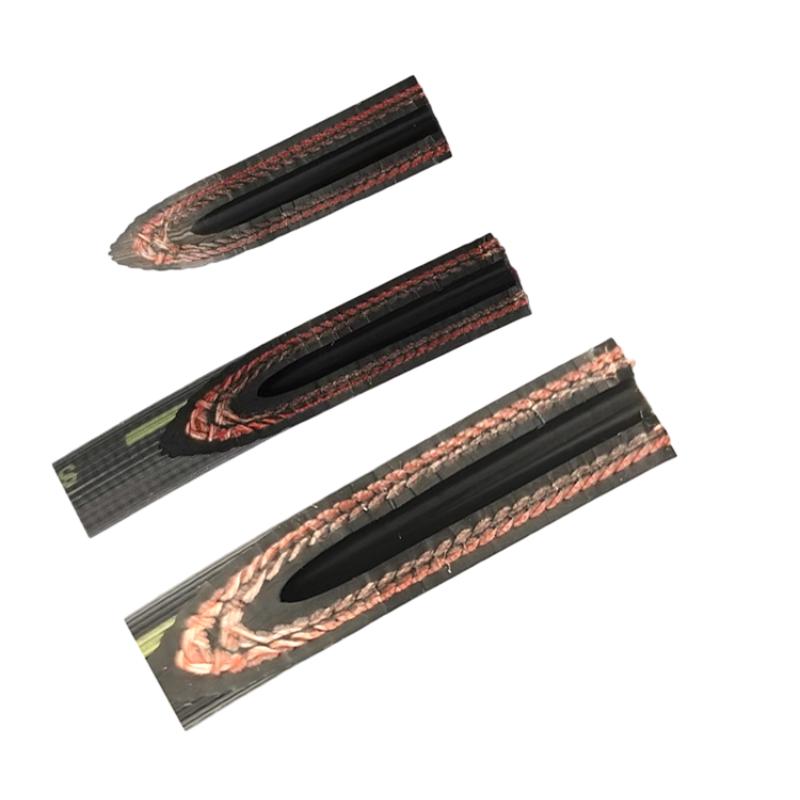

Hydraulic Brake Hose

Short Description:

Working Temperature:-40℃～+150℃/-40°F～300°F

Tube: Special rubber formula with perfect brake fluid compatibility -EPDM

Reinforcement: High tensile synthetic textile(PET)

Cover: EPDM-synthetic rubber

Surface: Smooth surface/Cloth-wrapped

Standard: SAE1401

Certificate:3C/DOT

Application: Truck or car

CONTACT NOW down load to pdf

Tags

Simple Introduction

Air brakes generally use drum brakes. More suitable for Trucks.

Air brake is designed for compressed air brake systems on trucks and buses. This hose meets SAE J1402 specifications and DOT regulation FMVSS-106 (anyone making brake assemblies must register with DOT and ensure each assembly complies with FMVSS-106).

SPECIAL FEATURES

● High Pressure resistance

● Cold Resistance

● Ozone Resistance
● Lower Volume Expansion

● Oil Resistance

● Excellent Flexibility
● High Tensile Strength

● Aging Resistance

● Bursting Resistancence
● Excellent Resistance of Heat

● Abrasion Resistance

● Reliable Braking effects

Parameter

SPECIFICATIONS:
Inch	Spec(mm)	I.D（mm)	O.D(mm)	Max B.Mpa	Max B.Psi
1/8"	3.2*10.2	3.35±0.20	10.2±0.30	70	10150
1/8"	3.2*10.5	3.35±0.20	10.5±0.30	80	11600
1/8"	3.2*12.5	3.35±0.30	12.5±0.30	70	10150
3/16"	4.8*12.5	4.80±0.20	12.5±0.30	60	8700
1/4"	6.3*15.0	6.3±0.20	15.0±0.30	50	7250
