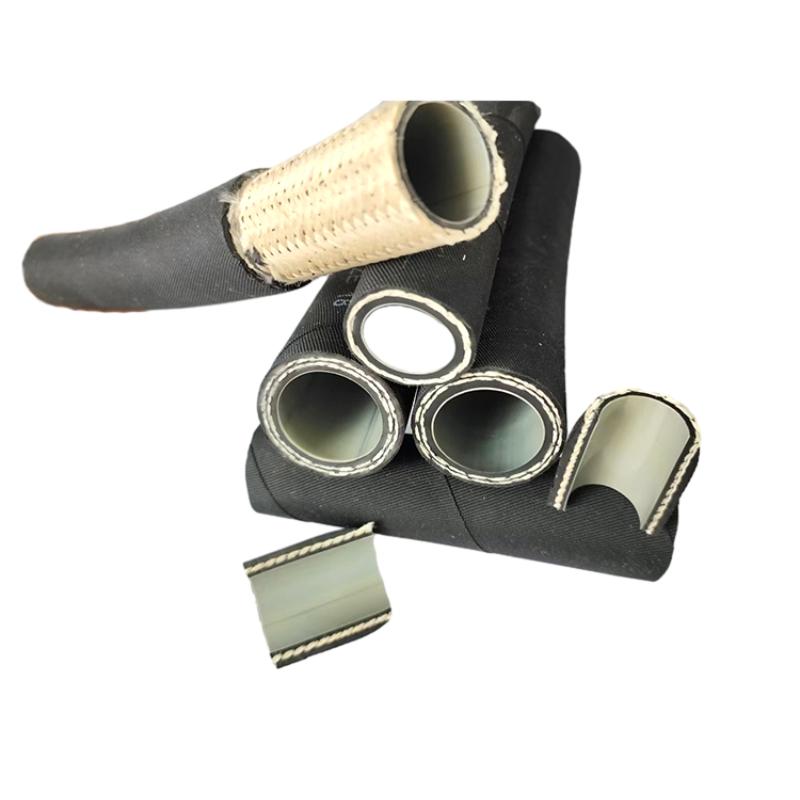

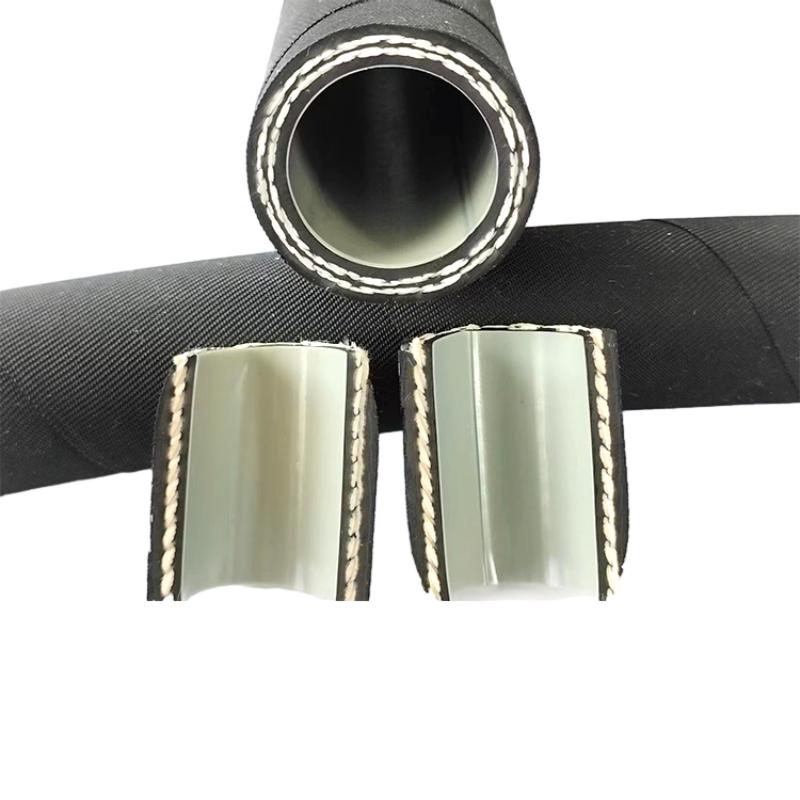

Refrigeration Hose

Short Description:

Working Temperature:-40℃～+140℃/-40°F～284°F

Barrier: PA/NYLON

Friction: EPDM/CSM/IIR

Reinforcement: PET/PVA

Cover: EPDM/CLOTH

Standard: SAE J2064

Certificate:3C/DOT

CONTACT NOW down load to pdf

Tags

Parameter

Inch	Spc(mm)	I.D（mm)	O.D(mm)	W.T(mm)	Max W.Mpa	Max W.Psi	Max B.Mpa	Max B.Psi
5/16''	7.9*14.7	7.9±0.2	14.7±0.3	3.4	3.5	500	22.0	3000
13/32''	10.3*17.3	10.3±0.2	17.3±0.3	3.5	3.5	500	22.0	3000
1/2''	12.7*19.4	12.7±0.2	19.4±0.3	3.4	3.5	500	22.0	3000
5/8''	15.9*23.6	15.9±0.2	23.6±0.3	3.9	3.5	500	22.0	3000

Features:

Low Permeability; Pulse-Resistance; Aging-Resistance; Ozone

Resistance; Shock

Refrigerant:

R404a

Applicable Liquid:

Diluent、Xylene、Solvent Gasoline

Simple Introduction

SAE J188 Power Steering Hose use to the vehicles of the power steering system and pressure transfer in the power steering assembly.

SAE J188 Power Steering Hose is designed to transfer air, oil, water in cold condition. It performs well with flexible softness under the low temperature.

It can provide reliable and safe power steering performance in any circumstances to ensure the vehicle operate easily and safely.

Application

Conveying Organic Solvents from Industrial Equipment
