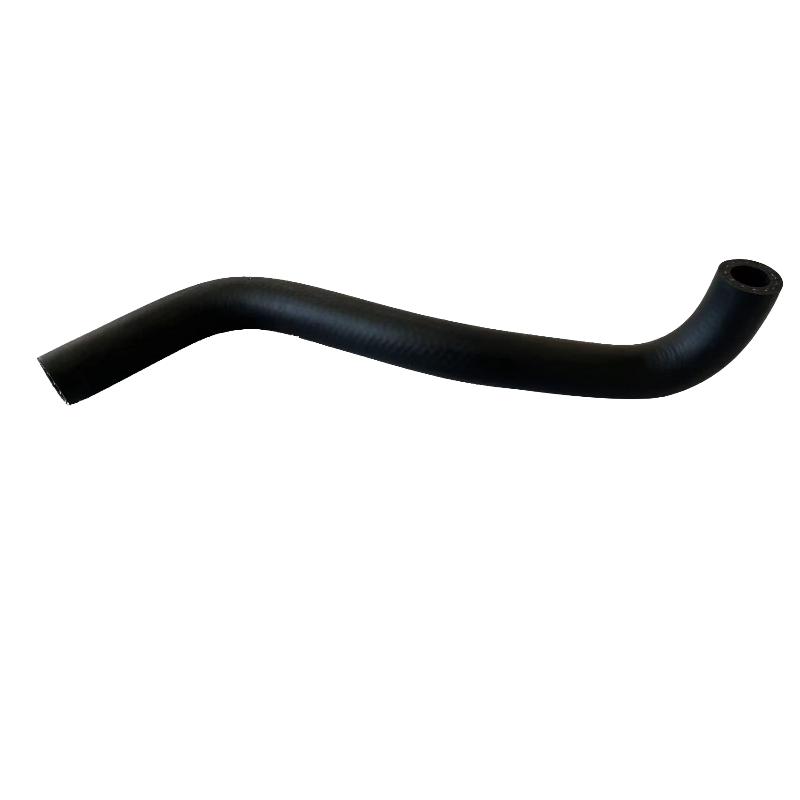

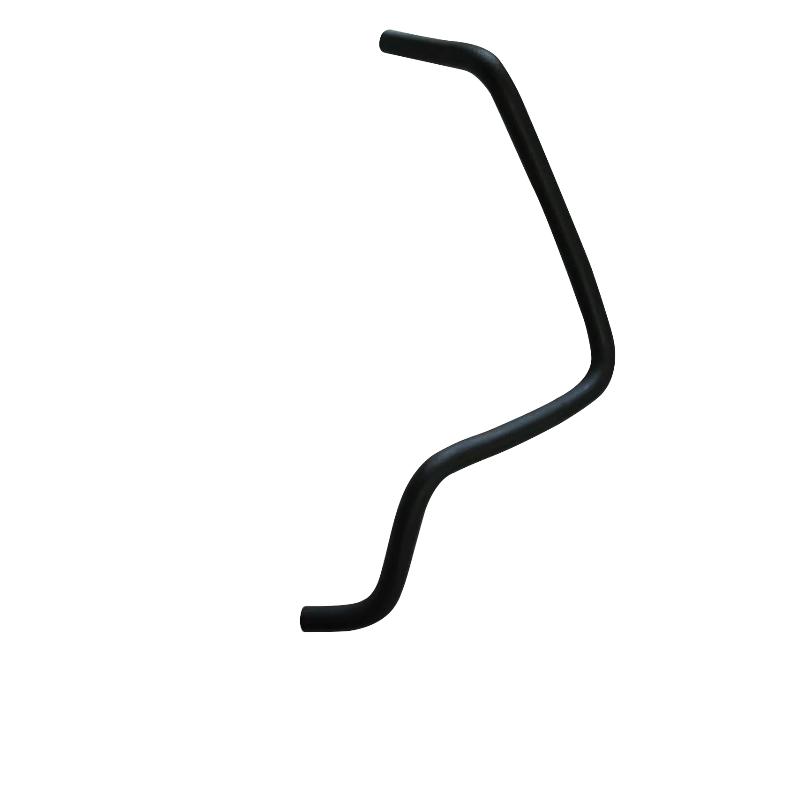

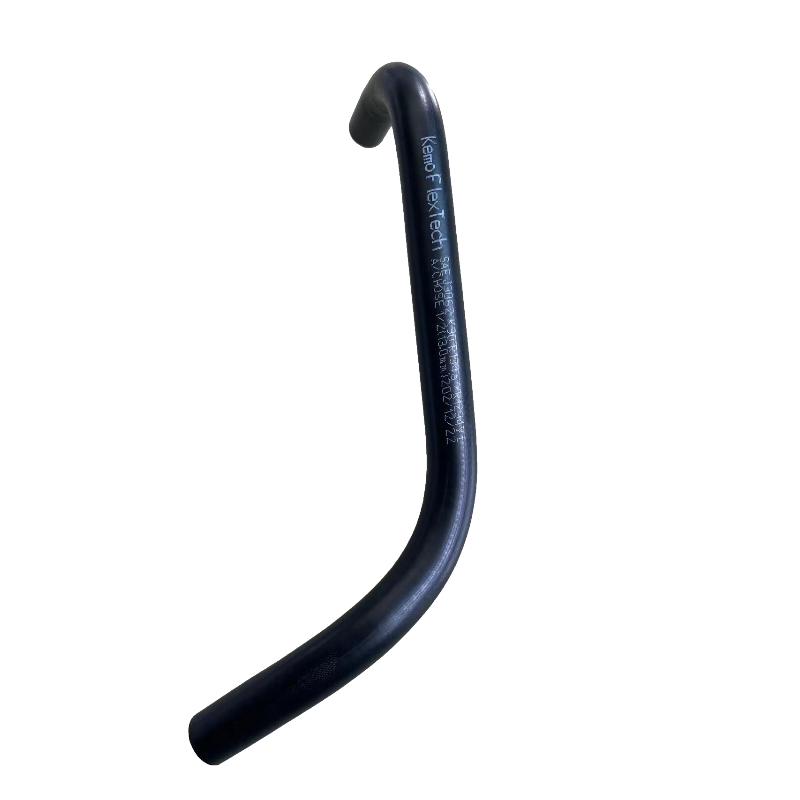

Formed AC Hose

Short Description:

Working Temperature:-40℃～+140℃/-40°F～284°F

Tube: EPM/CSM/IIR

Barrier: PA/Nylon

Friction: EPDM/CSM/IIR

Reinforcement: PET/PVA

Cover: EPDM/IIR

Surface: Smooth surface

Stnadard:SAE J2064/SAE J3062/QC/T664

CONTACT NOW down load to pdf

Tags

Simple Introduction

Air conditioning hose is used for automotive or domestic air conditioning system.

With industry-leading features like near-zero permeation, a tighter bend radius and the widest temperature range in its class, the KEMO A/C hose is an SAE J2064 standard hose that's setting an entirely new standard for performance, flexibility and durability. Plus, KEMO hose is qualified with several refrigerants and refrigerant oils including the emission-reducing R1234yf, helping you meet a variety of customer, industry and environmental requirements with a single, versatile hose. Durable construction that's built to wear better and last longer. With the KEMO hose can help customers meet productivity goals and sustainability guidelines with ease.

Parameter

Inch	Spc(mm)	I.D（mm)	O.D(mm)	W.T(mm)	Max W.Mpa	Max W.Psi	Max B.Mpa	Max B.Psi
5/16''	7.9*14.7	7.9±0.2	14.7±0.3	3.4	3.5	500	22.0	3000
13/32''	10.3*17.3	10.3±0.2	17.3±0.3	3.5	3.5	500	22.0	3000
1/2''	12.7*19.4	12.7±0.2	19.4±0.3	3.4	3.5	500	22.0	3000
5/8''	15.9*23.6	15.9±0.2	23.6±0.3	3.9	3.5	500	22.0	3000
