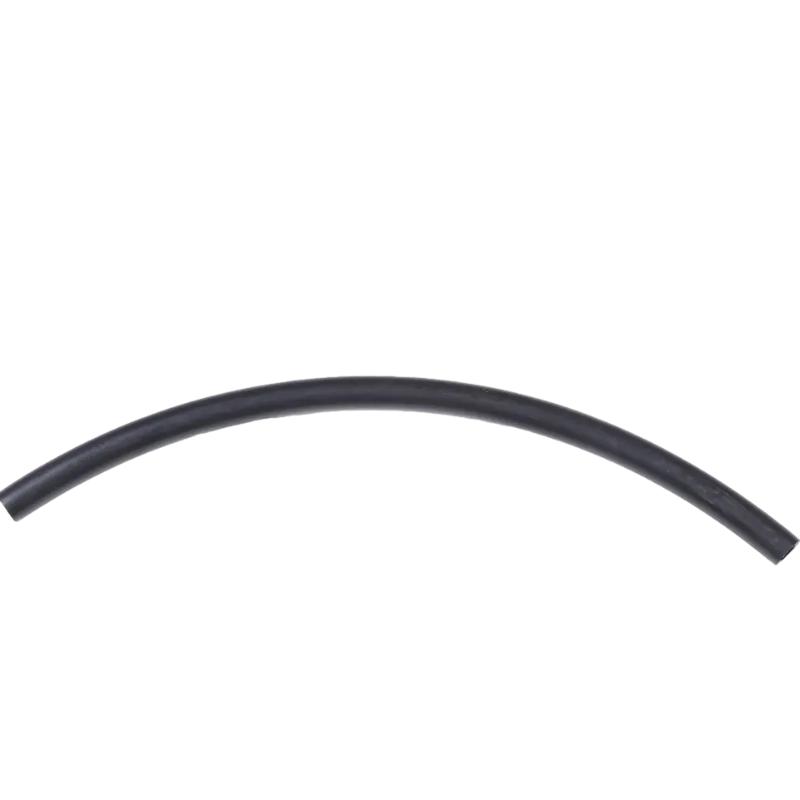

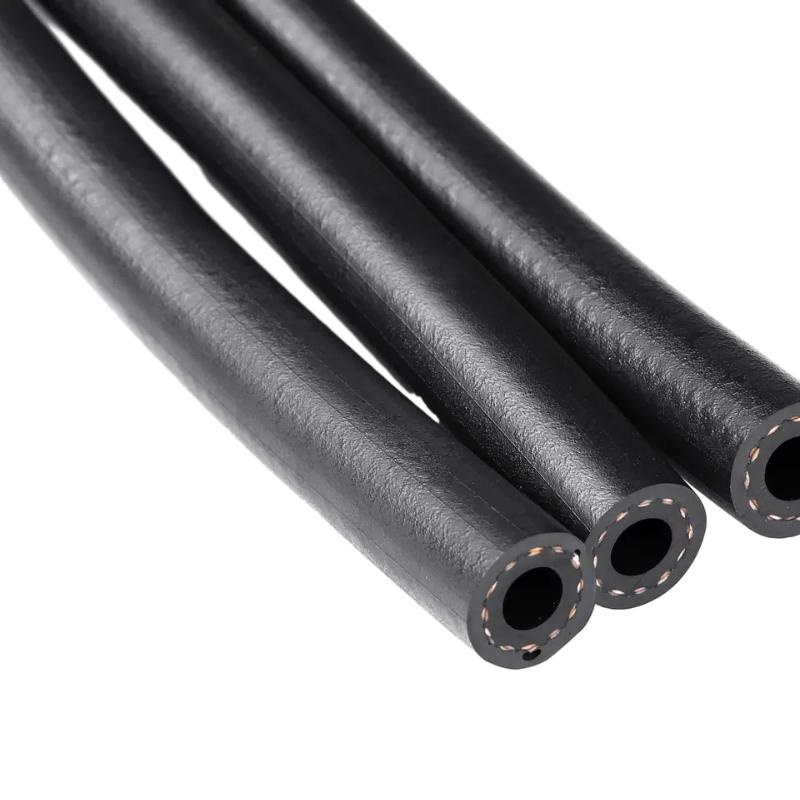

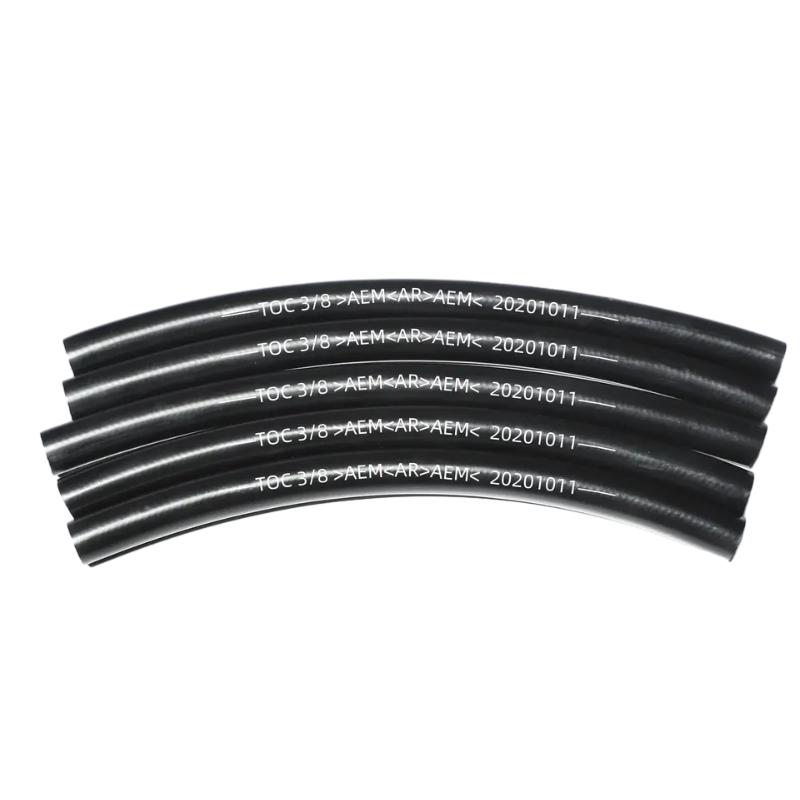

Low Pressure Power Steering Oil Hose SAE J189

Short Description:

Temperature: -40℃ ~ +120℃/-40°F ~ +248°F

Burst Pressure:0.5MPa~2.0MPa

Tube: NBR synthetic rubber

Reinforcement: High tensile synthetic textile(PET)

Cover: High-quality CSM rubber

Surface: Smooth surface and cloth-wrapped

Application: low-pressure pipeline of the power steering system of various cars, light trucks and multi-function commercial vehicles

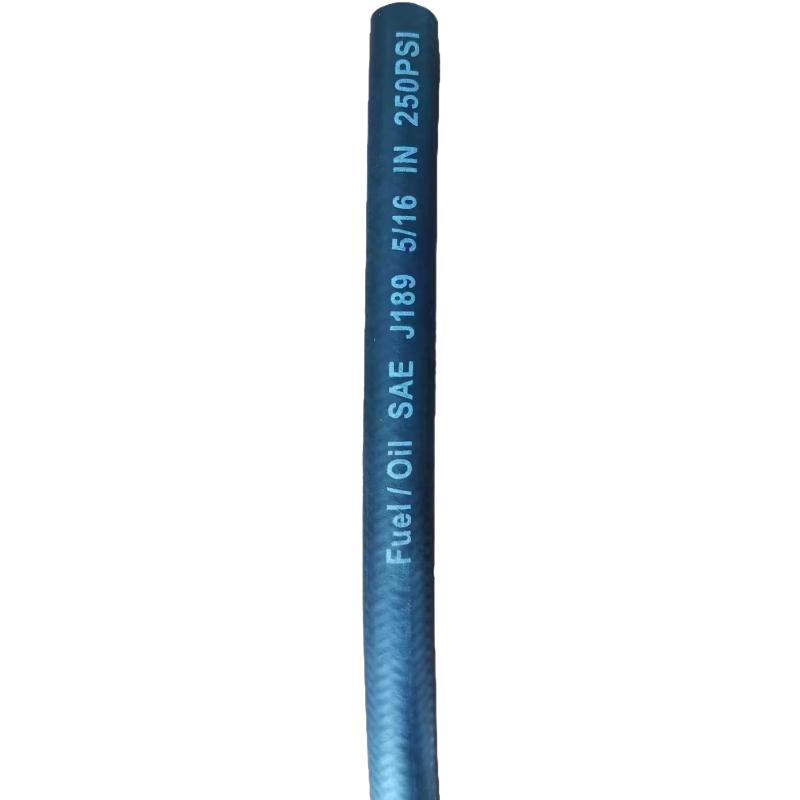

Standards: SAE J189 JAN98

CONTACT NOW down load to pdf

Tags

Product Information

The low-pressure hose,it may not use compression fittings due to the lower pressure in this hose. The low-pressure (return) hose carries oil from the steering gear back to the pump or its reservoir.

The power steering pressure hose is a key component of the steering system that can help direct your car carefully, smoothly, and securely. The power steering pump directs fluid from the reservoir into the steering gear, helping to apply the right amount of pressure to turn the wheels smoothly and consistently on uneven terrain and high speeds.

Parameter

Low pressure power steering hose SAE J189 Size List
Specification	I.D (mm)	O.D (mm)	Concentricity (mm)
9.5*17.0	9.5±0.2	17.0±0.3	<0.56
13.0*22.0	13.0±0.2	22.0±0.4	<0.76
16.0*24.0	16.0±0.2	24.0±0.5	<0.76

Fuel Hose Feature:

High Pressure; Aging Resistance; Pulse Resistance; Ozone Resistance

Power Steering Hose Process

1. Making Ingredients
2. Mixing
3. Rubber Testing
4. Mandreling
5. Tube Extrusion
6. First-Braiding
7. Buffer Extrusion
8. Second-Braiding
9. Cover Extrusion
10. Painting
11. Sheathing/ Wrapping
