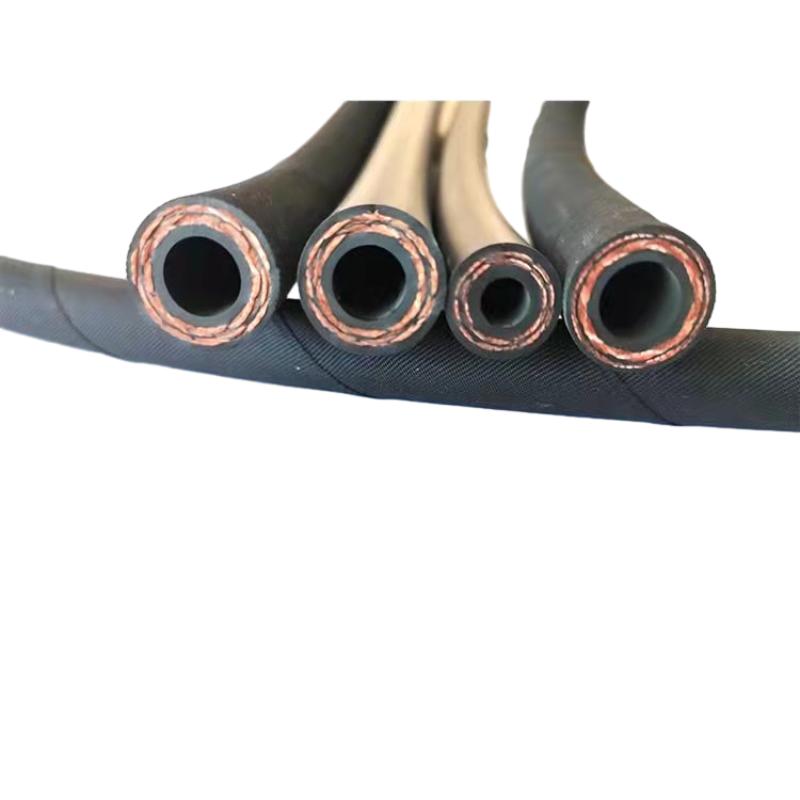

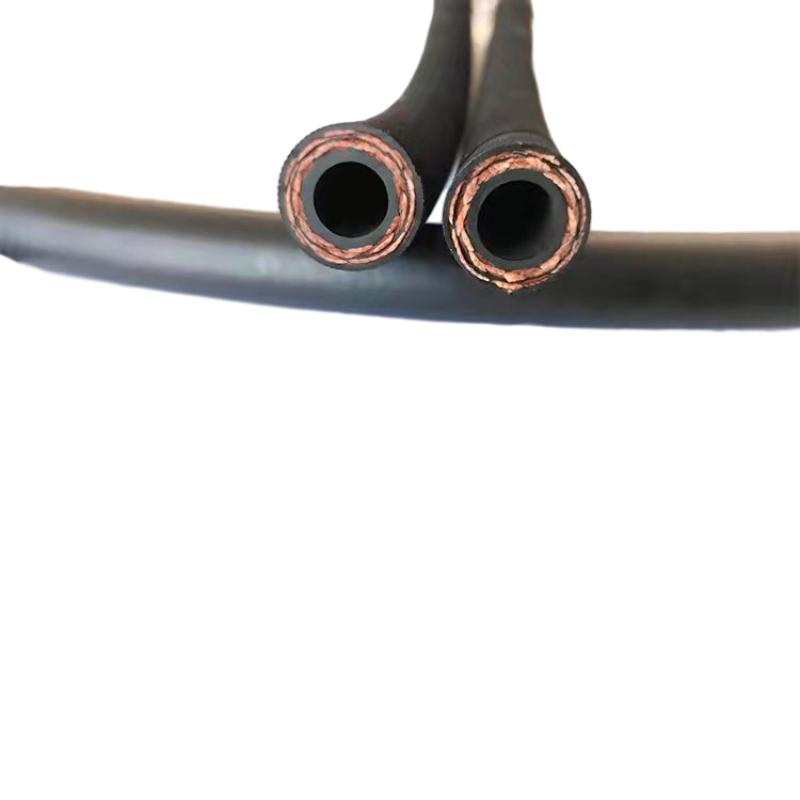

High Pressure Power Steering Hose

Short Description:

Working Temperature:-40℃～+150℃/-40°F～302°F

Surface: Smooth surface/Cloth-wrapped

Standard: SAE J188/MS263-53

Certificate: ISO/TS 16949:2009

Application: Auto power steering system

CONTACT NOW down load to pdf

Tags

Product Information

SAE J188 Power Steering Hose use to the vehicles of the power steering system and pressure transfer in the power steering assembly.

SAE J188 Power Steering Hose is designed to transfer air, oil, water in cold condition. It performs well with flexible softness under the low temperature.

It can provide reliable and safe power steering performance in any circumstances to ensure the vehicle operate easily and safely.

Parameter

SPECIFICATIONS:
Inch	Spec(mm)	I.D（mm)	O.D(mm)	Max B.Mpa	Max B.Psi
1/4''	6.3*14.5	6.3±0.2	14.5±0.3	65～85	9400～12300
5/16''	8.0*18.0	8±0.2	18±0.4	65～85	9400～12300
3/8''	9.5*18.5	9.5±0.3	18.5±0.4	65～85	9400～12300
3/8''	9.5*20.0	9.5±0.3	20±0.4	65～85	9400～12300
13/32''	9.8*18.5	9.8±0.3	18.5±0.4	65～85	9400～12300
13/32''	9.8*19.8	9.8±0.3	19.8±0.4	65～85	9400～12300
13/32''	10.0*20.0	10±0.3	20±0.5	65～85	9400～12300
1/2''	13.0*23.0	13±0.5	23±0.5	65～85	9400～12300
