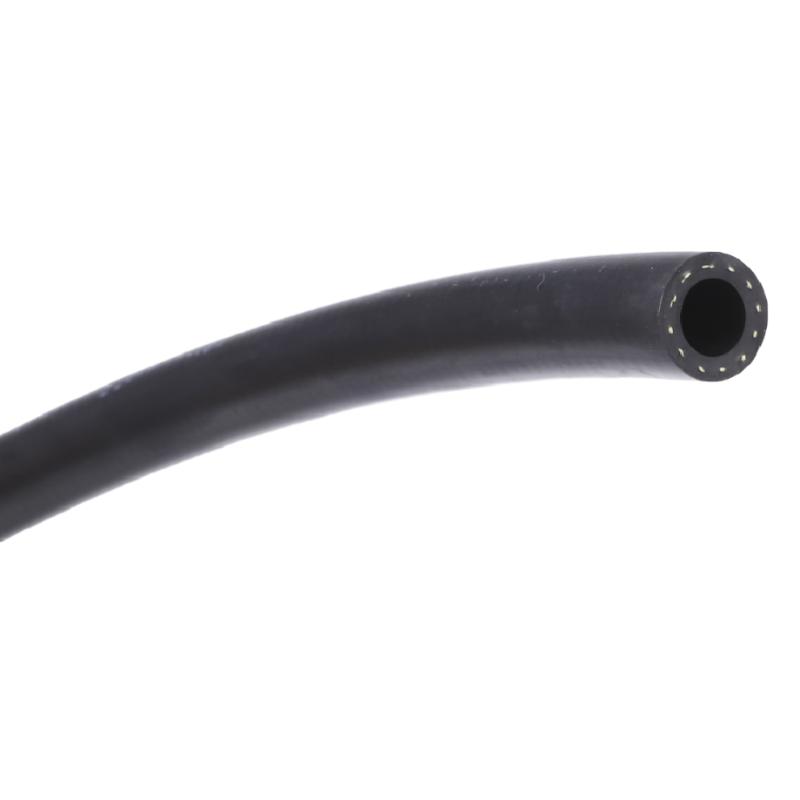

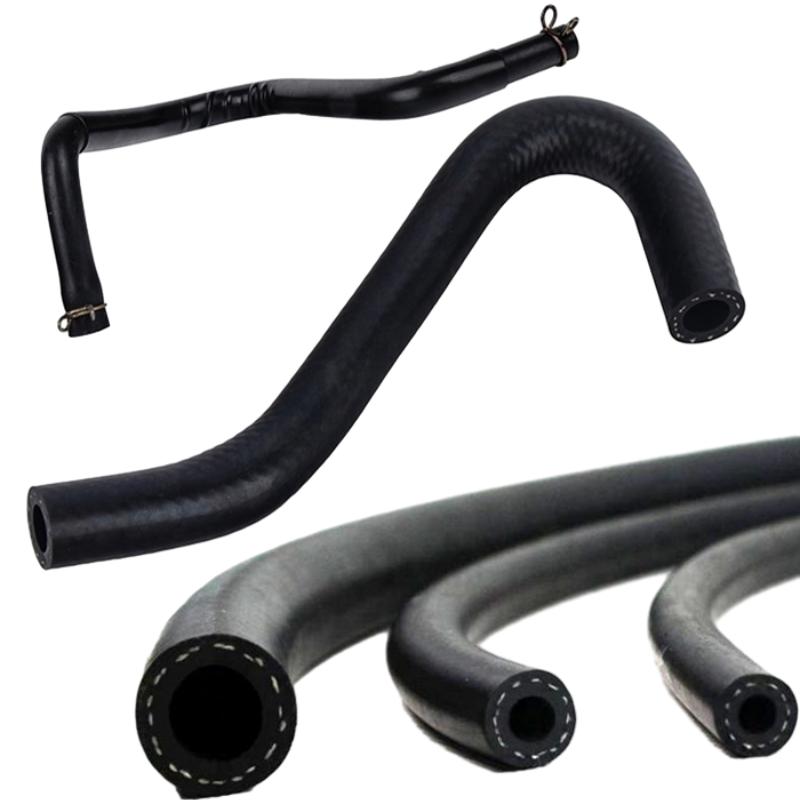

Fuel Hose SAE J30R9

Fuel Hose SAE J30R9

Fuel Hose SAE J30R9

Short Description:

Temperature: -40℃ ~ +150℃/-40°F ~ +300°F

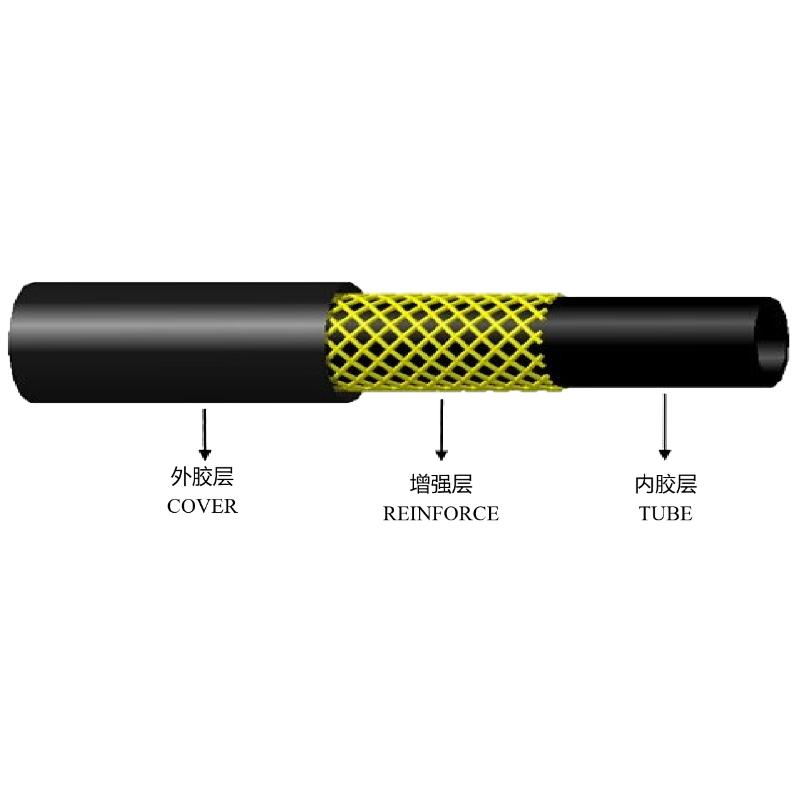

Tube: FKM

Reinforcement: Aramid

Cover: ECO

Standard: SAE J 30R9

Certificate: ISO/TS 16949:2009

Application: auto and truck fuel injection systems

down load to pdf


Share

Detail

Tags

Product Information



KEMO fuel hose range is designed for the safe handling of a variety of petroleum-based fuels. Our fuel pipe products are precision engineered to deliver durability through a wide range of operating temperatures. We also offer flexible sizes to suit most medium and heavy-duty applications. Our fuel line hoses are made from premium quality materials ensuring an extended service life. This also enables them to withstand extreme operating temperatures, high vibrations and chemically challenging environments. These fuel hoses are suitable for use for a variety of applications across many of today's major markets.



Fuel Hose Standard



SAE 30R9 hoses are designed for high-pressure applications like fuel injection systems. Often SAE J30R9 is also CARB approved meaning it is EPA certified to a low permeation standard. This means the hose is designed to contain fuel evaporation through the cover.



Parameter



Fuel Hose SAE J30R9  Size List
Inch Specification(mm) I.D(mm) O.D(mm) Working Pressure
 Mpa		 Working Pressure
 Psi		 Burst Pressure
Min. Mpa		 Burst Pressure
 Min. Psi
1/8'' 3.0*9.0 3.0±0.15 9.0±0.20 2.06 300 8.27 1200
5/32'' 4.0*10.0 4.0±0.20 10.0±0.40 2.06 300 8.27 1200
3/16'' 4.8*11.0 4.8±0.20 11.0±0.40 2.06 300 8.27 1200
1/4'' 6.3*12.7 6.3±0.20 12.7±0.40 2.06 300 8.27 1200
5/16'' 8.0*14.0 8.0±0.30 14.0±0.40 2.06 300 8.27 1200
3/8'' 9.5*16.0 9.5±0.30 16.0±0.40 2.06 300 8.27 1200
15/32'' 12.0*19.0 12.0±0.30 19.0±0.40 2.06 300 8.27 1200
1/2'' 12.7*20.0 12.7±0.30 20.0±0.40 2.06 300 8.27 1200
5/8'' 16.0*24.0 16.0±0.30 24.0±0.40 1.03 150 4.12 600
3/4'' 19.0*28.8 19.0±0.30 28.8±0.40 1.03 150 4.12 600
1'' 25.4*35.0 25.4±0.30 35.0±0.40 1.03 150 4.12 600



Fuel Hose Feature:

High Adhesion; Low Penetration; Excellent Gasoline Resistance
;Aging Resistance;Good Tensile Strength;Good Bending

Properties at low temperature

Applicable Liquid:

Gasoline, diesel,bio-diesel, E-85, Ehanol extended gasoline
