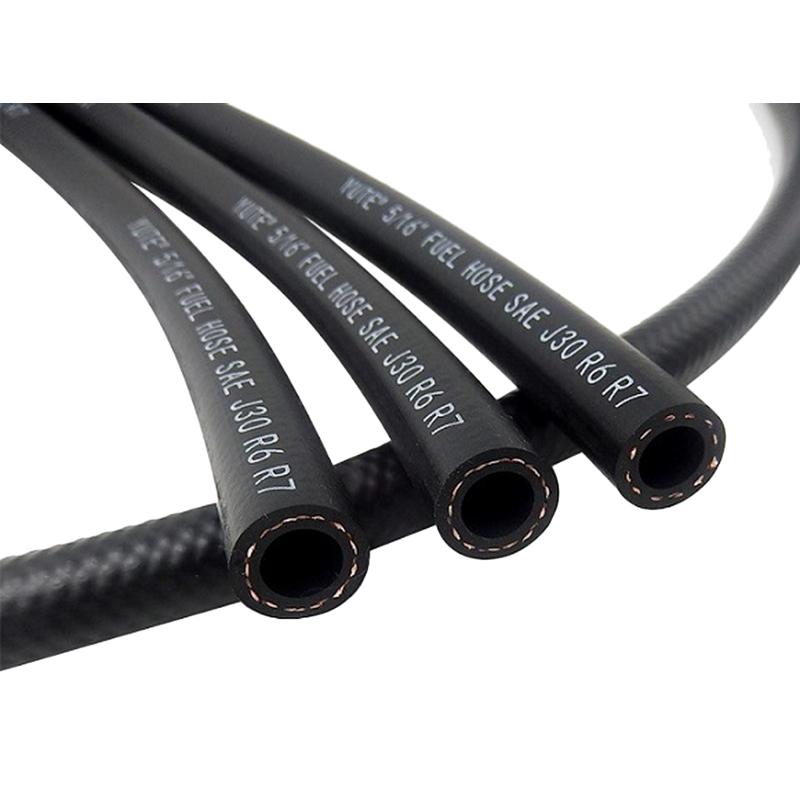

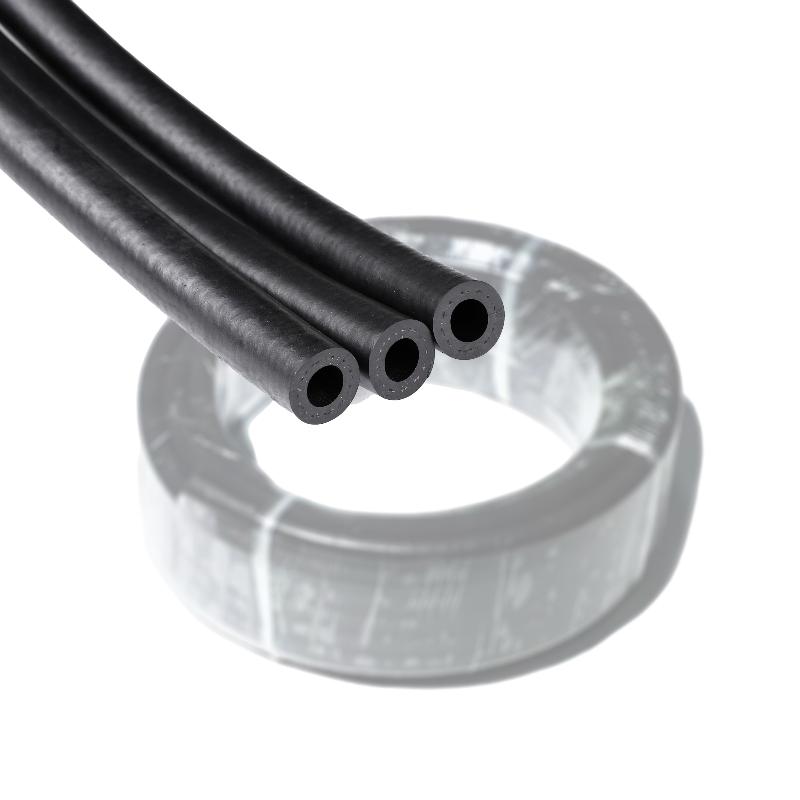

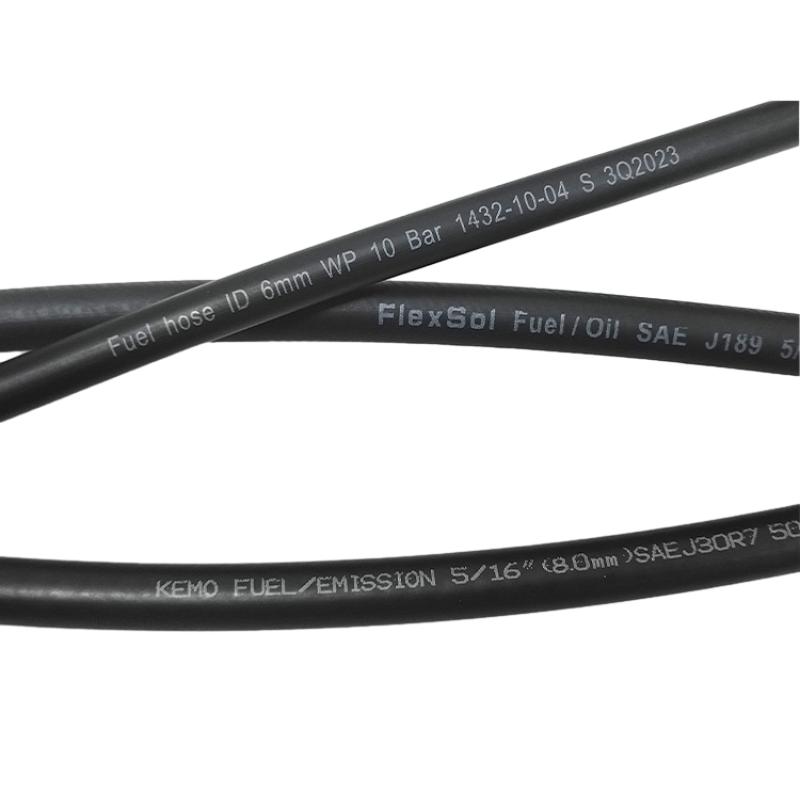

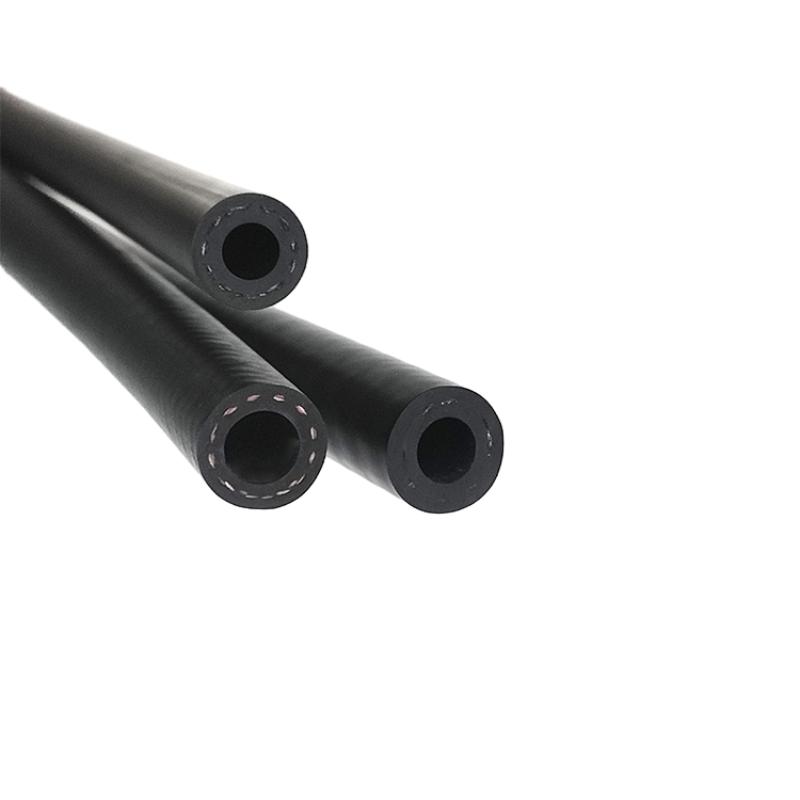

Fuel Hose SAE J30R6/R7

Short Description:

Temperature: -40℃ ~ +150℃/ -40°F ~ +300°F

Tube: NBR synthetic rubber

Reinforcement: High Tensile Braided

Cover: NBR and Environment Resistant Synthetic Rubber

Certificate: ISO/TS 16949:2009

Standard: SAE J 30R6/R7 DIN 73379 Type 2A

Application: Gasoline Engine， Diesel Engine, Mechanical Lubrication System

CONTACT NOW down load to pdf

Tags

Product Information

KEMO fuel hose range is designed for the safe handling of a variety of petroleum-based fuels. Our fuel pipe products are precision engineered to deliver durability through a wide range of operating temperatures. We also offer flexible sizes to suit most medium and heavy-duty applications. Our fuel line hoses are made from premium quality materials ensuring an extended service life. This also enables them to withstand extreme operating temperatures, high vibrations and chemically challenging environments. These fuel hoses are suitable for use for a variety of applications across many of today's major markets.

Fuel Hose Standard

1. SAE 30R6 hoses are designed for low-pressure applications like carburetors, filler necks and connections between tanks. In most markets, SAE 30R6 has been replaced by SAE 30R7.
2. SAE 30R7 hoses are designed for fuel. These can go under the hood and are typically used for low-pressure applications like carburetors or a fuel return line. It can also be used for PCV connections and emissions devices.

Parameter

Fuel Hose SAE J30R6/R7 Size List
Inch	Specification(mm)	I.D(mm)	O.D(mm)	Working Pressure Mpa	Working Pressure Psi	Burst Pressure Min.Mpa	Burst Pressure Min.Psi
1/8''	3.0*7.0	3.0±0.15	7.0±0.20	2.06	300	8.27	1200
1/4''	6.0*12.0	6.0±0.20	12.0±0.40	2.06	300	8.27	1200
19/64''	7.5*14.5	7.5±0.30	14.5±0.40	2.06	300	8.27	1200
5/16''	8.0*14.0	8.0±0.30	14.0±0.40	2.06	300	8.27	1200
3/8''	9.5*17.0	9.5±0.30	17.0±0.40	2.06	300	8.27	1200
13/32''	10.0*17.0	10.0±0.30	17.0±0.40	2.06	300	8.27	1200

Fuel Hose Feature:

High Adhesion; Low Penetration; Excellent Gasoline Resistance
;Aging Resistance;Good Tensile Strength;Good Bending

Properties at low temperature

Applicable Liquid:

Gasoline, Diesel, Hydraulic and Machinery oil and Lubricating oil, E10, E20, E55, and E85 for passenger cars, diesel vehicles, and other fuel supply systems.
