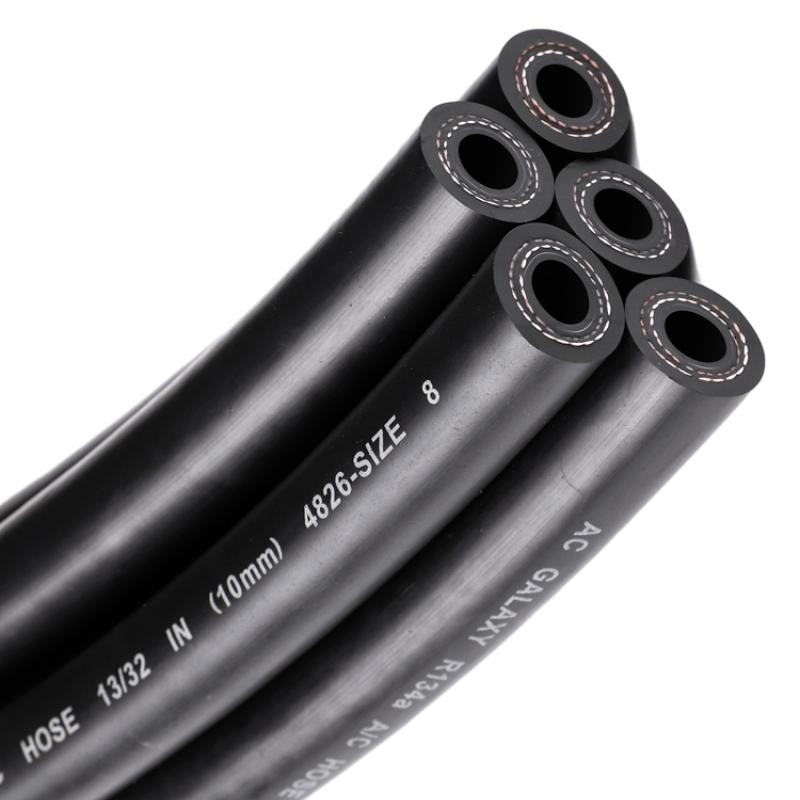

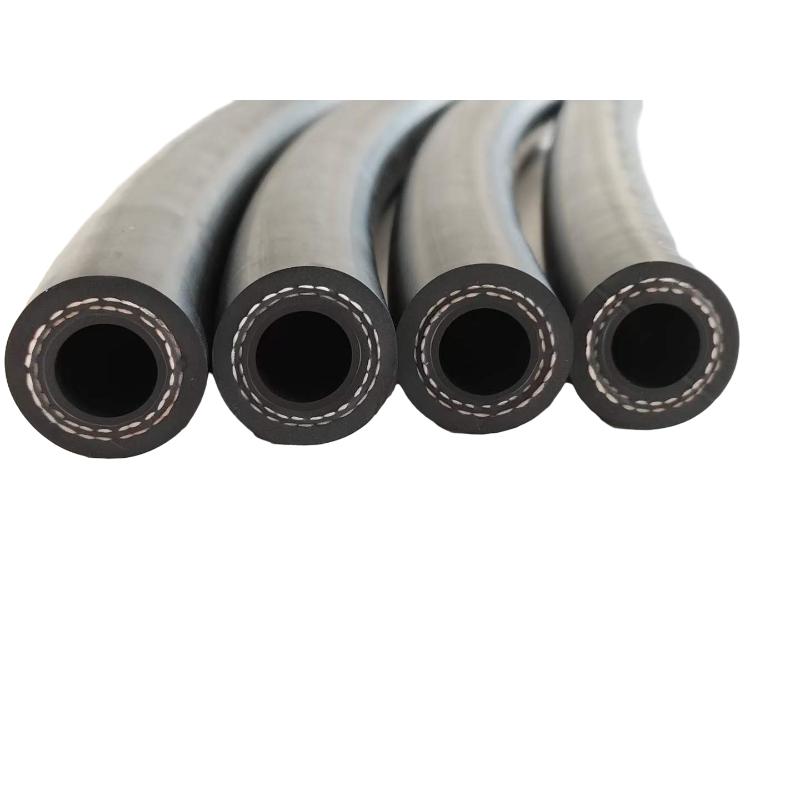

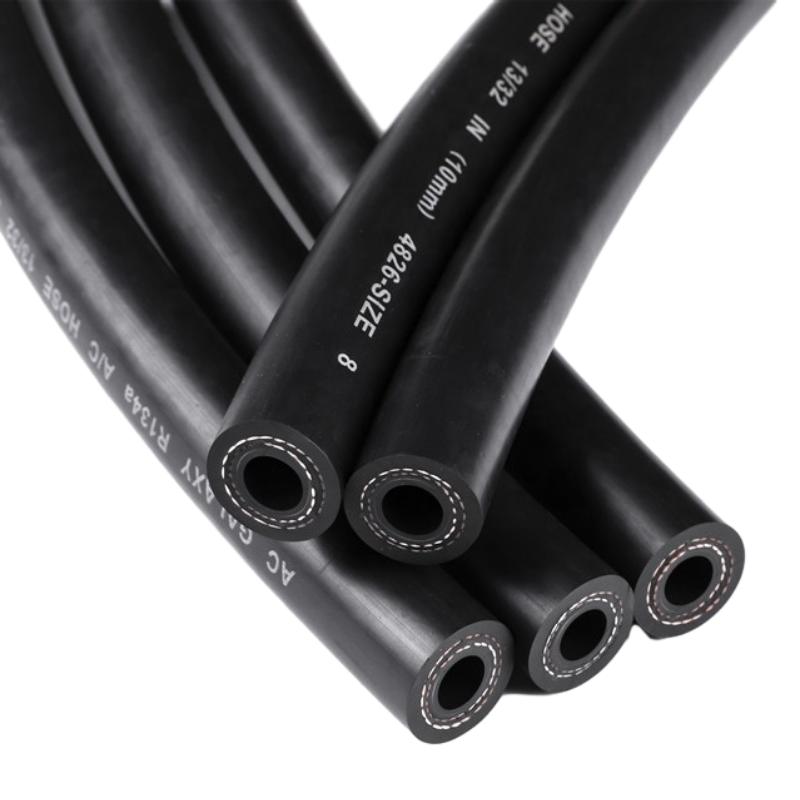

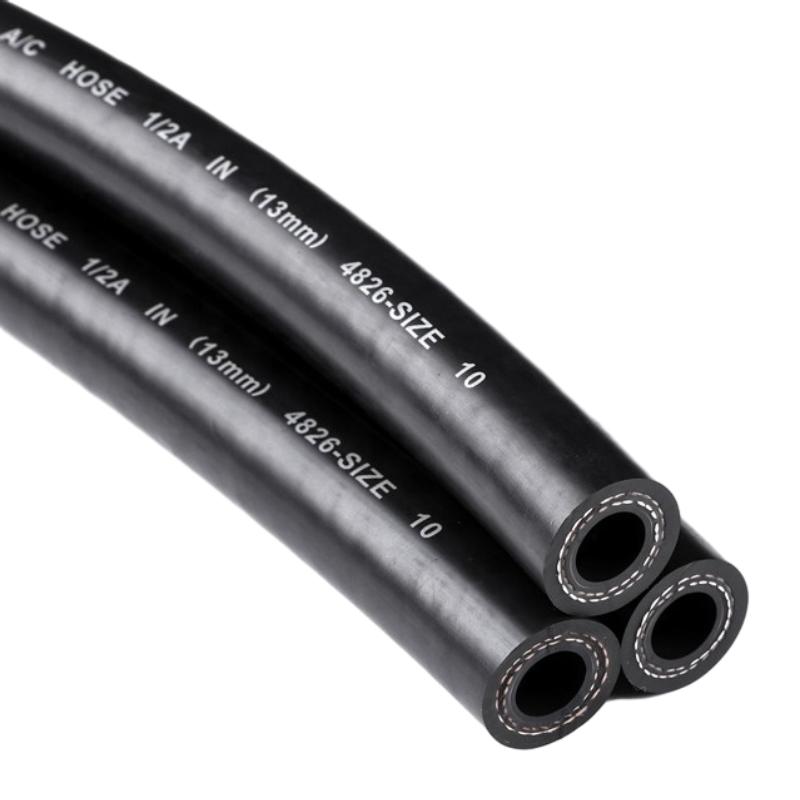

4826 A/C HOSE(Type C)SEVEN LAYER WINDING

4826 A/C HOSE(Type C)SEVEN LAYER WINDING

4826 A/C HOSE(Type C)SEVEN LAYER WINDING

Short Description:

Temperature:-40℃~+135℃/-40°F~+275°F

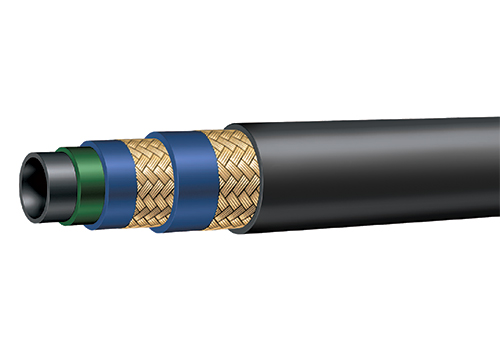

Tube: EPDM
Barrier: PA/NYLON
Friction: EPDM
Reinforcement: PET/ PVA
Cover: EPDM
Standard: SAE J2064 / SAE J3062 /QC/T664

Certificate: ISO/TS 16949:2009



down load to pdf


Share

Detail

Tags

Parameter



Specification Size I.D  O.D  Thickness  Max Working Pressure  Min Burst Pressure  Min Bend Radius  Permeation
Inch mm mm mm mm Mpa. Psi Mpa. Psi mm kg/㎡/year
5/16 8.2*19.0 8.2±0.3 19.0±0.5 5.5 3.5 508  21  3045  55 1.9
13/32 10.5*23.0 10.5±0.3 23.0±0.5 6.2 3.5 508  21  3045  65 1.9
1/2A 13.0*25.4 13.0±0.3 25.4±0.5 6.2 3.5 508  22  3190  75 1.9
1/2B 13.0*23.0 13.0±0.3 23.0±0.5 5 3.5 508  22  3190  70 1.9
5/8 16.0*28.6 16.0±0.3 28.6±0.5 6.3 1.5 218  18  2610  85 1.9



Features:

Low Permeability; Pulse-Resistance; Aging-Resistance; Ozone Resistance; Shock

Refrigerant:

R134a、R404a、R1234yf

Read More About type c type e automotive air conditioning hose

KEMO Advantage

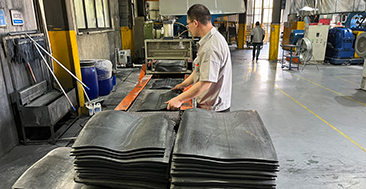

(1) We introduced the Technical Engineers and Production Engineers from Goodyear and Parker Company, we have over 15 years experience in domestic market and Top 3 Manufacturer in China.
(2）Developed new products with many well-known research institutions and testing centers in China
(3) Research and develop new materials，new products, and new processes
(4) Ability to test and experiment the performance of products
Therefore, KEMO can provide OEM, ODM services, provide foreign customers with new product design, development, testing and providing related testing reports as customer's request.



Package



  1. 1. Transparent PVC film packing,
    2. Color woven bag packing ( Blue / White / Green / Yellow)
    3. Pallet packing
    4. Carton packing
  2. 5. Spool packing
Read More About type c type e automotive air conditioning hose



  1. Application

  2.

  3. The Air Conditioning Hose is used in the Air Conditioning System of cars, trucks, and other vehicles with the performance of low permeability, pulse resistance, aging resistance, Ozone resistance, and shock resistance.
