In the realm of commercial and industrial vehicles, air brake systems rely on precise fluid dynamics to ensure safe stopping power. From air brake hose and air brake air line to specialized air brake chamber hose and robust air brake line solutions, these components form the backbone of heavy-duty braking systems. Understanding their roles, materials, and maintenance is crucial for fleet managers, truckers, and mechanics to maintain optimal performance and safety.

Air Brake Hose: Flexible Connectors for Pneumatic Braking Systems

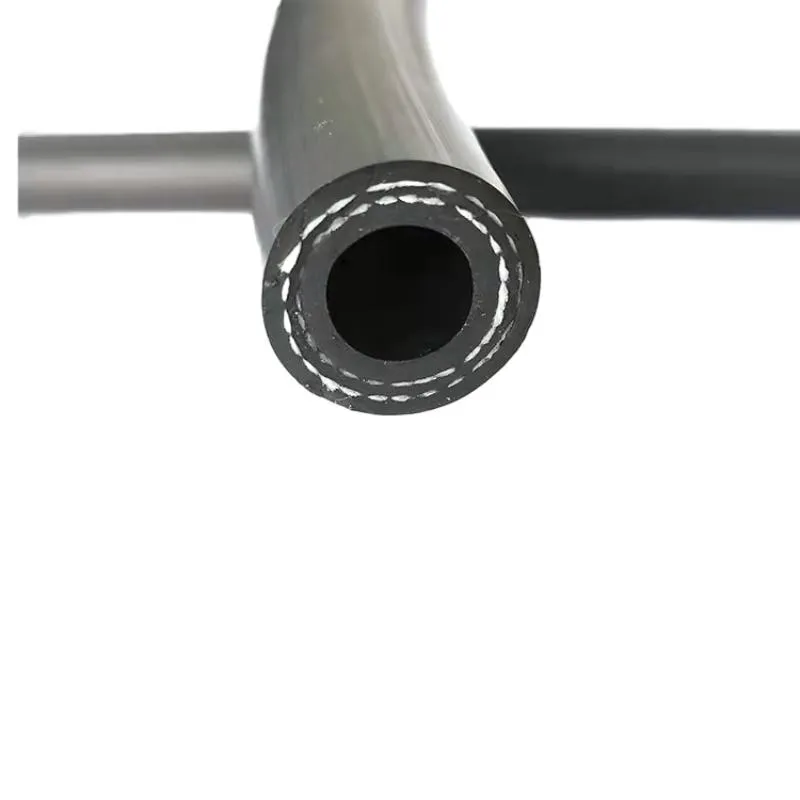

Air brake hose serves as the flexible link in pneumatic braking systems, transmitting compressed air from the truck’s air tanks to the brake chambers and other components. These hoses are constructed with durable materials like EPDM rubber or thermoplastic, reinforced with textile or synthetic fibers to withstand high air pressure (typically 120–150 PSI) and resist abrasion, heat, and ozone. For example, a semi-truck’s air brake hose might connect the trailer gladhand to the truck’s brake system, allowing flexible movement between the cab and trailer during turns. Regular inspection of these hoses is critical—cracks, bulges, or leaks can lead to loss of air pressure, compromising braking efficiency.

Air Brake Air Line: Rigid Tubing for Pneumatic Pressure Transmission

Air brake air line consists of rigid tubing that forms the fixed pathways for compressed air within the brake system, typically made of galvanized steel, aluminum, or nylon. These lines are designed to maintain consistent air pressure from the air compressor to the brake valves and chambers, ensuring uniform braking across all axles. In a commercial truck, air brake air line tubing might run along the chassis from the cab to the rear axles, with fittings withstanding vibration and harsh road conditions. Proper routing and support of these lines are essential to prevent kinking or damage, as a compromised air line can lead to uneven braking or complete system failure.

Air Brake Chamber Hose: Specialized Connections for Brake Actuation

Air brake chamber hose is a critical component that connects the brake control valve to the brake chambers, transmitting air pressure that activates the braking mechanism. These hoses are designed to withstand the repeated pressure cycles of heavy braking, often featuring reinforced rubber or thermoplastic construction with high burst strength. For instance, in a trailer’s air brake system, the chamber hose carries air from the relay valve to the brake chamber, expanding the diaphragm to apply brake shoes to the drums. The hose’s flexibility allows for movement of the brake chamber during suspension travel, while its durability ensures long-term performance under constant use.

Air Brake Hose for Fuel Line: Ensuring Compatibility and Safety

While air brake hose is designed for pneumatic systems, it’s crucial to distinguish between brake hoses and those used for fuel lines, as cross-contamination poses severe safety risks. Air brake hoses are rated for compressed air and may not be compatible with fuel or other liquids. For fuel line applications, specialized hoses resistant to gasoline, diesel, or biofuels should be used. A common mistake is using air brake hose mistakenly for fuel lines, which can lead to leaks, fuel spray, or even fire. Always verify the hose’s material and rating (e.g., SAE J30R9 for fuel lines) to ensure compatibility with the fluid it will carry.

Air Brake Line: Comprehensive Solutions for Pneumatic Systems

Air brake line encompasses both rigid tubing and flexible hoses, forming the complete pneumatic network of a braking system. In large commercial vehicles, this includes primary and secondary air lines, supply lines, and control lines, each serving a specific function in brake actuation and air supply. For example, the primary air line carries compressed air from the truck to the trailer, while the secondary line acts as a backup and controls the trailer brakes. These Air brake line must meet industry standards (such as DOT FMVSS 121) for pressure ratings, material durability, and leak resistance. Regular maintenance, including checking for corrosion, leaks, or physical damage, is essential to ensure the air brake line system operates flawlessly.

Air Brake System FAQs

How do I identify a leaking air brake hose?

• Listen for hissing sounds, a common sign of air leaks.
• Visually inspect hoses for cracks, bulges, or worn spots.
• Use a soapy water solution: apply to connections and hoses—bubbles indicate leaks.
• Check air pressure gauges: a rapid drop in pressure when the engine is off signals a leak.
•

Can air brake hose be used for fuel lines?

No, air brake hose is designed for compressed air and may not resist fuel degradation. Fuel lines require hoses rated for specific fuels (e.g., SAE J30R9 for gasoline), as using the wrong hose can cause leaks, fuel system damage, or safety hazards.

What materials are best for air brake lines in harsh environments?

• Galvanized Steel: Resists corrosion, ideal for trucks in winter climates with road salt.
• Aluminum: Lightweight and corrosion-resistant, suitable for trailers or coastal use.
• Nylon: Flexible, easy to install, and resistant to abrasion, often used for auxiliary lines.
•

How often should air brake chamber hoses be replaced?

Replace chamber hoses every 5–7 years, or at the first sign of wear (cracks, stiffness, or leaks). Heavy use or exposure to harsh conditions may require more frequent replacement to prevent unexpected failures.

What's the difference between primary and secondary air brake lines?

• Primary Line: Transmits air from the truck to the trailer, controlling the trailer brakes in conjunction with the truck’s brakes.
• Secondary Line: Acts as a backup air supply and controls the trailer parking brakes, ensuring braking even if the primary line fails.
•

 How do I prevent air brake line corrosion?

• Use corrosion-resistant materials like galvanized steel or aluminum.
• Apply protective coatings to steel lines in saltwater or winter environments.
• Regularly inspect and clean lines, especially in the undercarriage, to remove salt and debris.
• Flush the air system periodically to remove moisture and contaminants that cause corrosion.
•

Can I repair a damaged air brake line, or must it be replaced?

Minor leaks in flexible hoses or rigid lines should be addressed by replacing the component, as repairs (e.g., tape or clamps) are temporary and unsafe. Always use OEM-rated replacement parts to maintain system integrity and comply with safety standards.

By prioritizing the health and compatibility of air brake hose, air brake air line, and related components, fleet operators and mechanics can ensure that heavy-duty braking systems remain reliable and safe. Proper material selection, regular inspection, and timely replacement of worn parts are essential for maintaining optimal pneumatic performance, preventing costly downtime, and ensuring the safety of commercial vehicles on the road.
