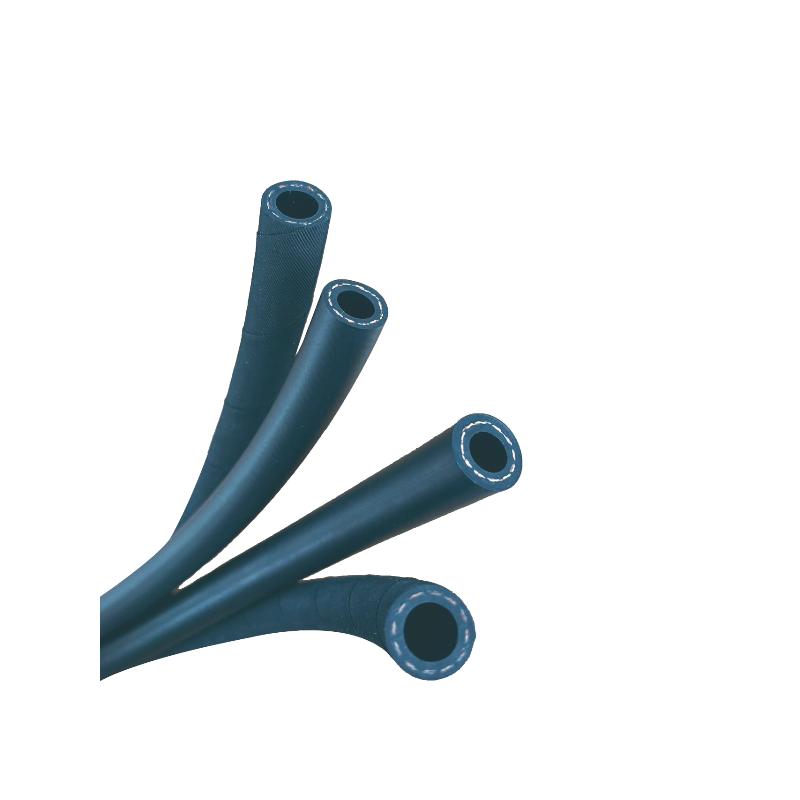

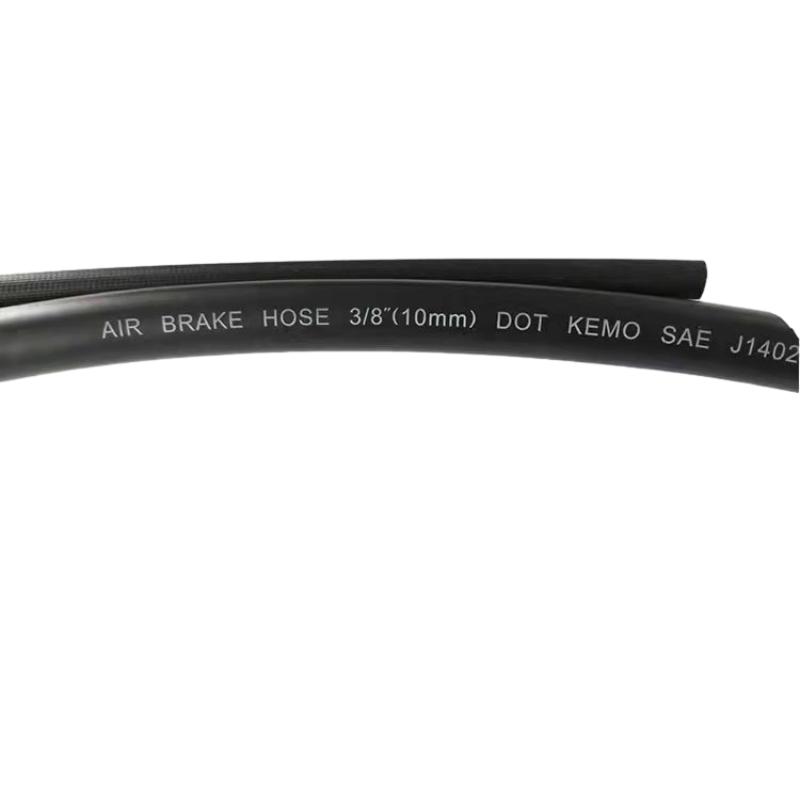

Air Brake Hose

Short Description:

Working Temperature:-40℃～+150℃/-40°F～300°F

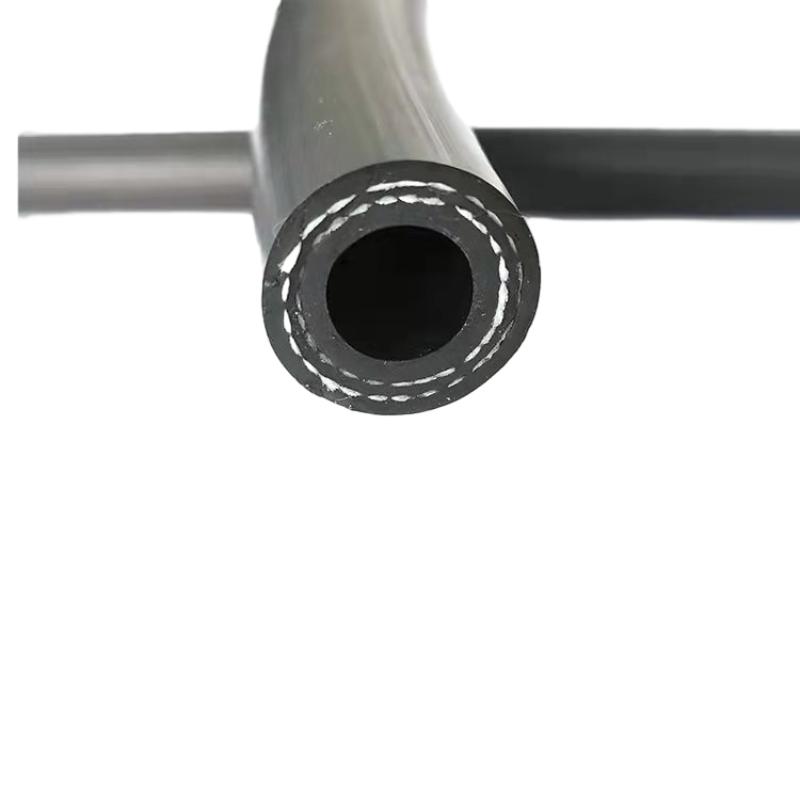

Tube: NBR synthetic rubber

Reinforcement:High tensile synthetic textile(PET)

Cover: EPDM-synthetic rubber

Surface: smooth surface and cloth-wrapped

Standard:SAE1402

Certificate:3C/DOT 3C/DOT

Application: Truck or car

CONTACT NOW down load to pdf

Tags

Simple Introduction

Air brakes generally use drum brakes. More suitable for Trucks.

Air brake is designed for compressed air brake systems on trucks and buses. This hose meets SAE J1402 specifications and DOT regulation FMVSS-106 (anyone making brake assemblies must register with DOT and ensure each assembly complies with FMVSS-106).

SPECIAL FEATURES

● High Pressure resistance

● Cold Resistance

● Ozone Resistance
● Lower Volume Expansion

● Oil Resistance

● Excellent Flexibility
● High Tensile Strength

● Aging Resistance

● Bursting Resistancence
● Excellent Resistance of Heat

● Abrasion Resistance

● Reliable Braking effects

Parameter

Inch	Spec(mm)	I.D（mm)	O.D(mm)	Max W.Mpa	Max W.Psi	Max B.Mpa	Max B.Psi
1/4"	6*14	6±0.3	14±0.4	3	2100	18	8700
5/16"	8*15	8±0.3	15±0.4	3	2100	18	8700
3/8"	10.0*17.0	10.0±0.3	17.0±0.4	3	2100	18	8700
3/8"	10.0*19.0	10.0±0.3	19.0±0.4	3	2100	18	8700
1/2"	13.0*22.0	13.0±0.3	22.0±0.50	2	2100	12	8700
5/8"	16.0*24.0	16.0±0.4	24.0±0.50	1.6	2100	9	8700
