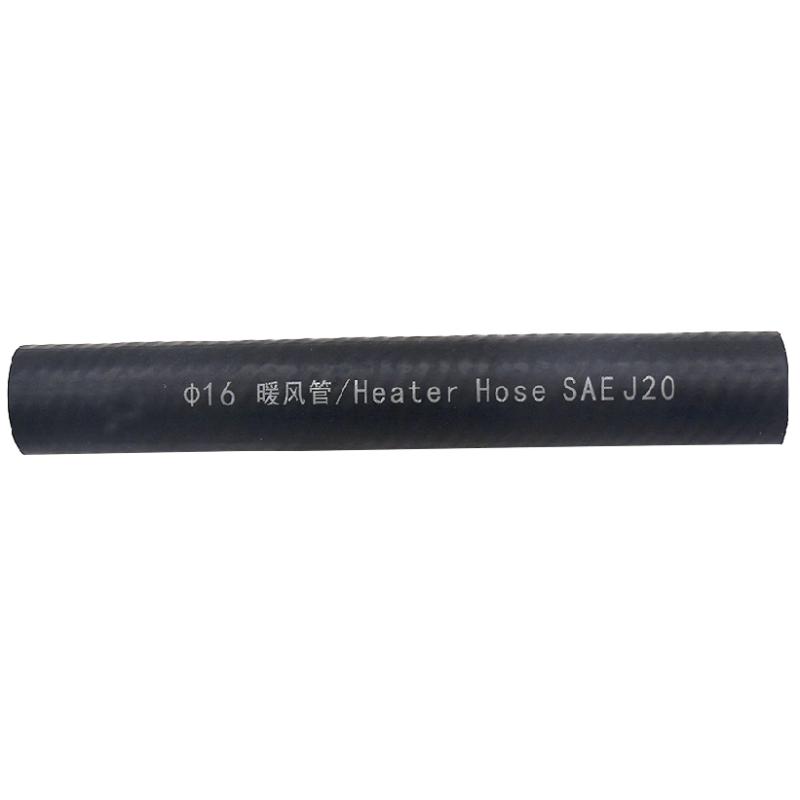

Heater Hose SAE J20R3

Short Description:

Temperature: -40℃ ~ +150℃/-40°F ~ +300°F

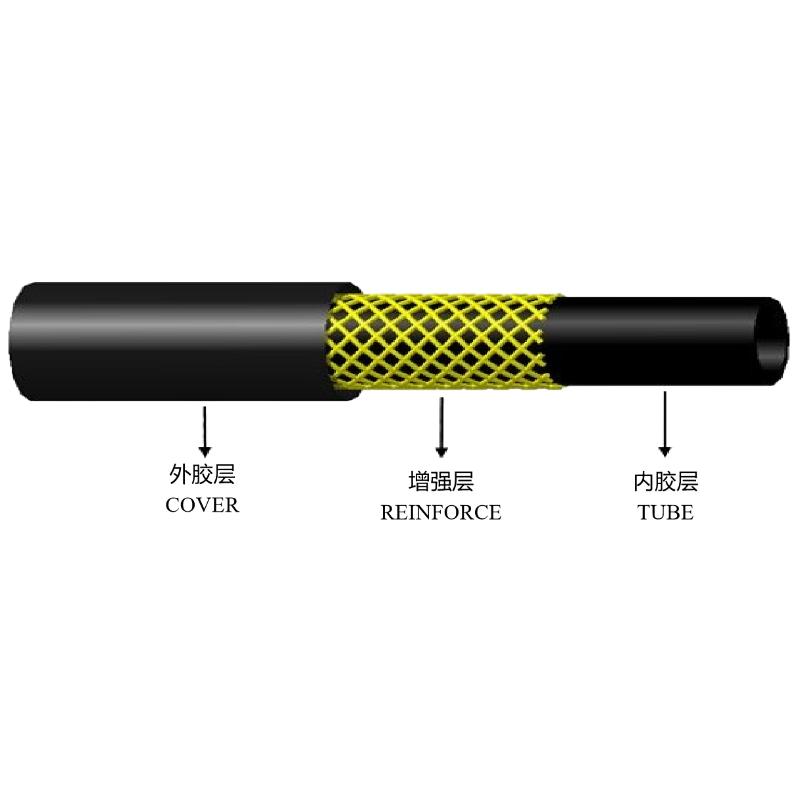

Tube: High-quality EPDM rubber

Reinforcement: High tensile synthetic textile (PET)

Cover: High-quality EPDM rubber

Standard: SAE J20R3

Certificate: ISO/TS 16949:2009

Application: Transporting oil to automatic transmission fluid

CONTACT NOW down load to pdf

Tags

Product Information

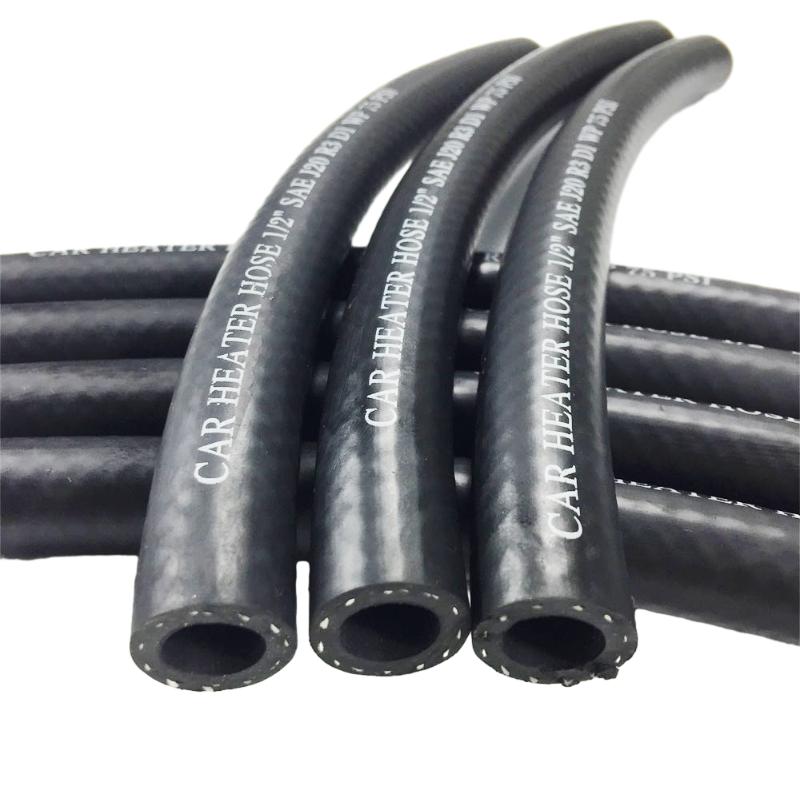

This mandrel-built radiator hose is suitable for delivering hot water and anti-freeze in cooling systems.The hose cover of the car heater hose is a smooth CR/NBR rubber cover which is weather, abrasion and oil resistant. Also this has a smooth bore with an EPDM liner making it suitable for ethylene glycol solutions. The high tensile strength textile ply reinforcement allows working pressures up to 10 bar, with a safety factor of at least 3:1.

Parameter

Heater Hose SAE J20R3 Size List
Inch	I.D(mm)	Length (m/roll)	Working Pressure Mpa	Working Pressure Psi	Burst Pressure Min.Mpa	Burst Pressure Min.Psi
14''	6	50	1.03	150	1.72	250
5/16''	7.9	50	1.03	150	1.72	250
3/8''	9.5	50	1.03	150	1.72	250
3/8''	10	50	1.03	150	1.72	250
1/2''	12.7	50	1.03	150	1.72	250
5/8''	15.9	50	1.03	150	1.72	250
11/16''	17.5	50	1.03	150	1.72	250
3/4''	19	50	1.03	150	1.72	250
1''	25.4	50	1.03	150	1.72	250
